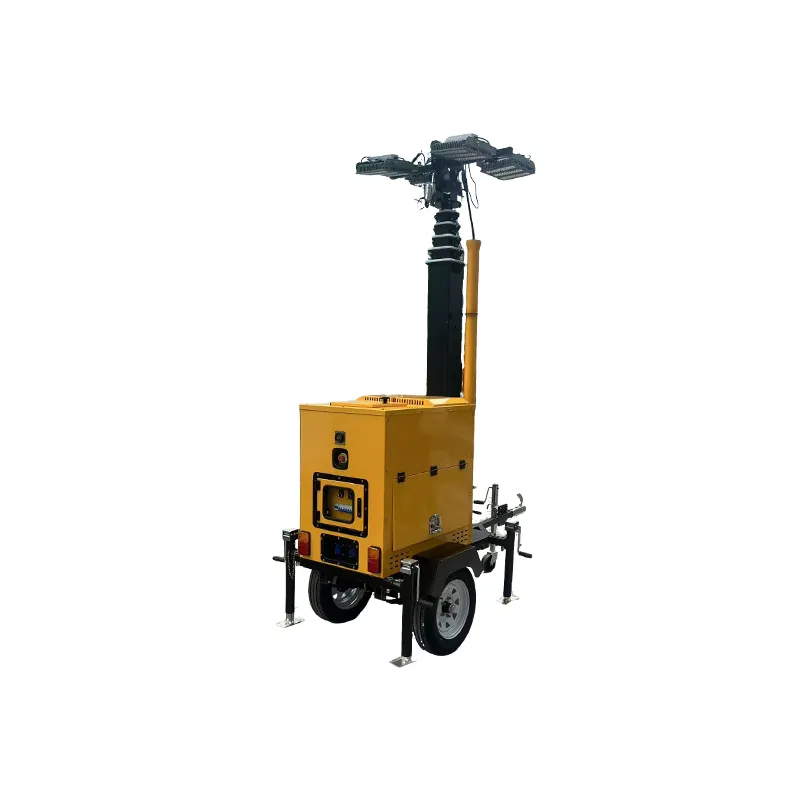

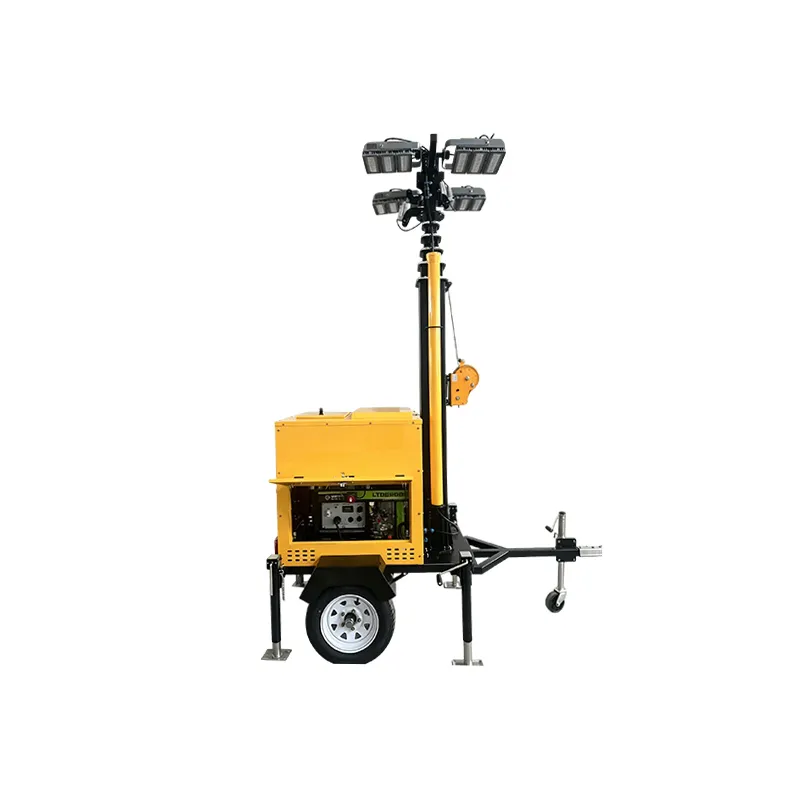

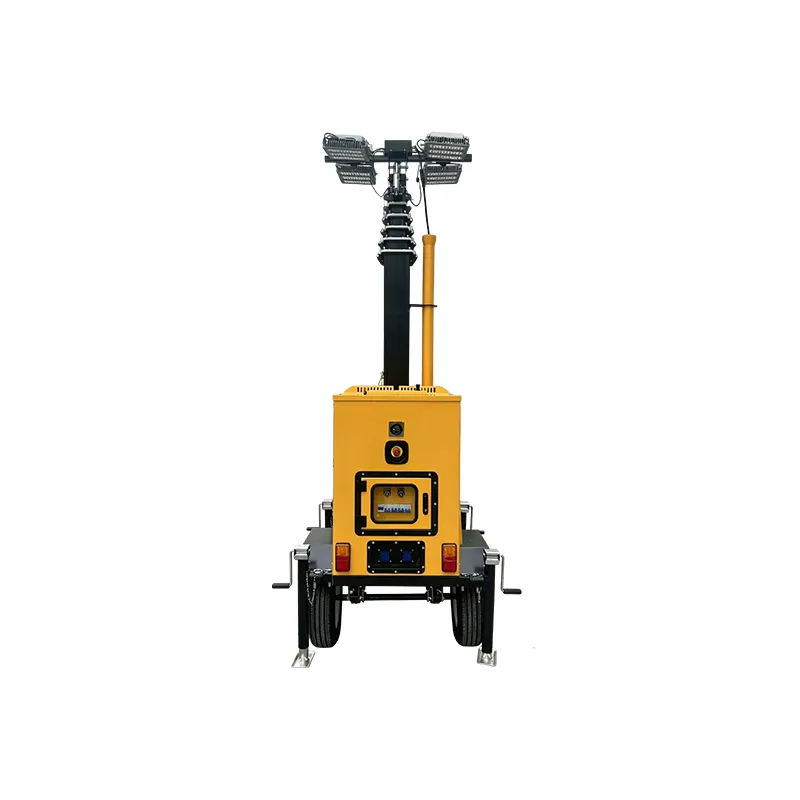

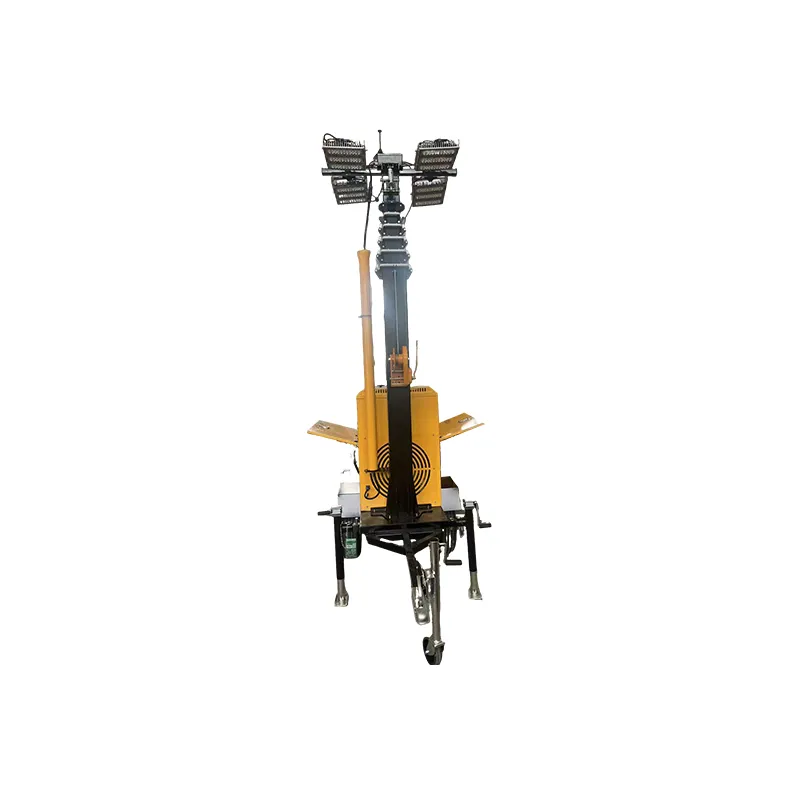

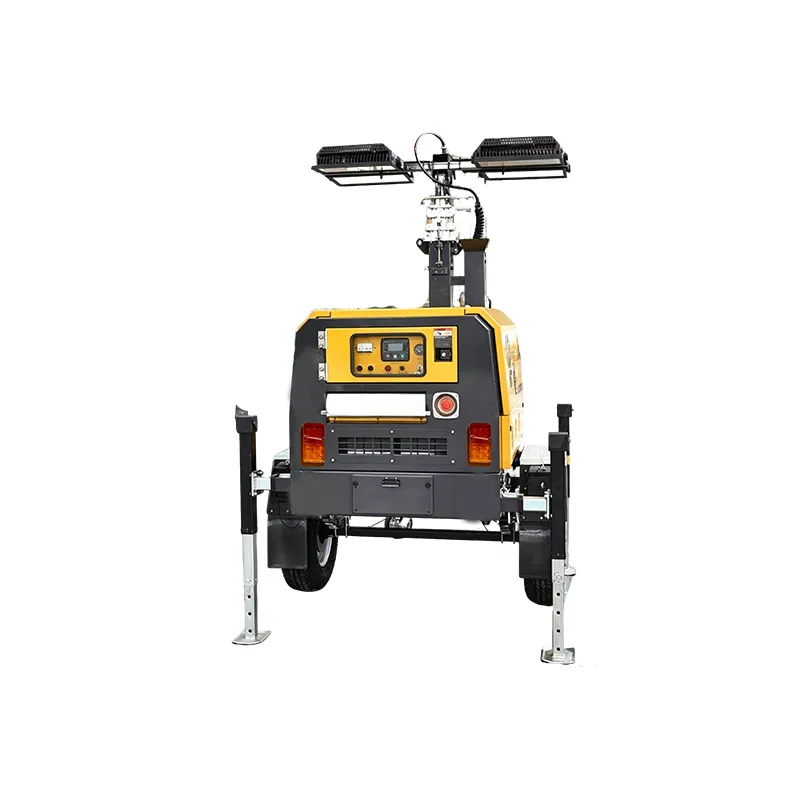

Trailer Type Hand-Cranked Mobile Lighting Tower
1. Manual lifting and lowering, economical and convenient
2. Very suitable for small-scale power failure emergency repairs
3. Equipped with emergency power supply, not afraid of short-term lack of oil for power generation
4. Can be equipped with charging, monitoring and other functions
5. Customizable chassis, color, even patterns
Portable Lighting Tower Trailer for Construction, Mining, Roadwork and Emergency Lighting
The portable lighting tower trailer is designed for fast deployment in construction sites, mining operations, road maintenance, airports, ports, and emergency rescue environments.
This towable lighting tower provides reliable off-grid illumination for night work and remote industrial areas, making it an ideal solution for construction site lighting and temporary outdoor lighting applications.
Equipped with a telescopic mast system, high-efficiency LED floodlights, and optional diesel generator or battery power system, this diesel lighting tower generator delivers stable, long-duration lighting performance in harsh environments.
It is widely used as a construction lighting tower, industrial lighting tower, and mobile lighting tower for sale solution for global B2B projects.

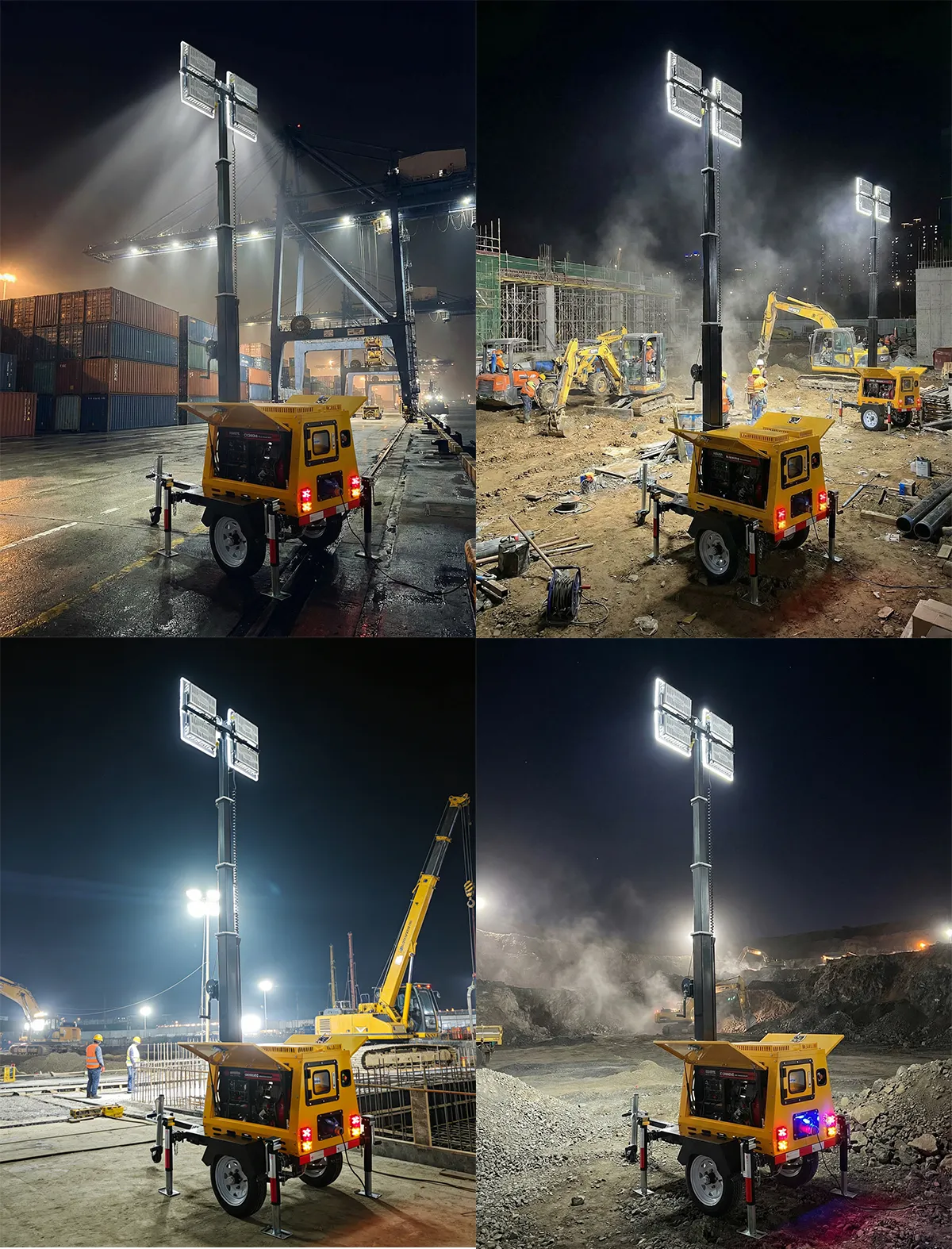

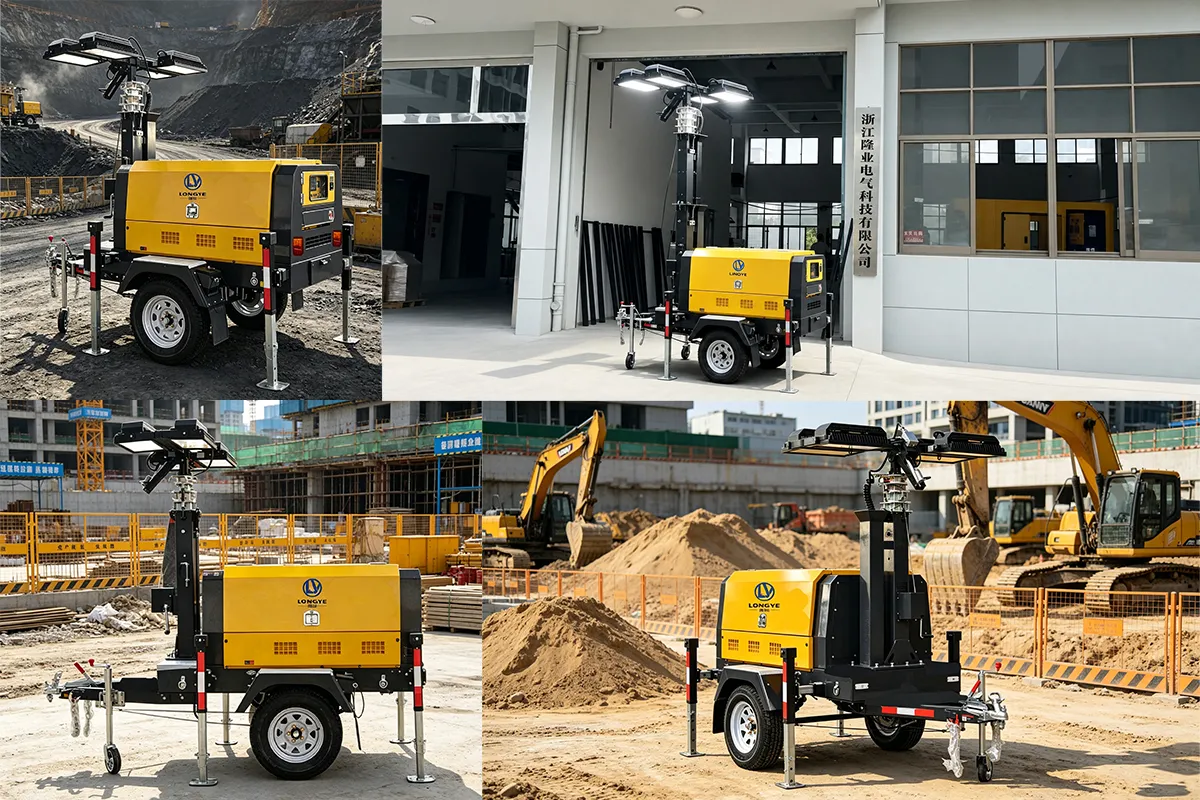

Mobile Lighting Tower Application Scenarios
Portable lighting towers are widely used in construction site lighting, mining operations, and emergency outdoor lighting where high-intensity temporary illumination is required.
| Application Area | Working Requirement | Lighting Tower Advantage |
| Construction Sites | Night construction, infrastructure projects | Fast deployment portable lighting tower system |
| Mining Operations | Harsh environment, long-hour operation | High brightness LED lighting tower solution |
| Road Maintenance | Traffic control and emergency repair | Quick setup towable lighting tower |
| Emergency Rescue | Disaster relief, blackout areas | Off-grid independent mobile lighting system |
| Airport / Port | Runway maintenance, cargo operations | Wide-area industrial lighting tower |
| Outdoor Events | Concerts, sports venues | Uniform large-area illumination |
Trailer Type Hand-Cranked Mobile Lighting Tower Technical Specifications
The portable lighting tower trailer system is engineered for durability, high brightness output, and long working hours in construction, mining, and industrial environments.
| Trailer type Hand-cranked mobile lighting tower | ||||
| No | System | Item Name | Specification | |
| 1 | Lighting system | Lamp type | ( ) Gas discharge lamp | ( ) 400W ( ) 1000W |
| 2 | ( ) LED lamp | ( ) 50W ( ) 100W ( ) 150W ( ) 200W ( ) 300W ( ) 400W ( ) 500W ( ) 1000W | ||
| 3 | ( ) Halogen tungsten lamp | ( ) 500W ( ) 1000W | ||
| 4 | Lamp input voltage | AC220V | ||
| 5 | Lamp IP grade | IP65 | ||
| 6 | Lamp quantity | ( ) 2 ( ) 4 ( ) 6 ( ) 8 | ||
| 7 | Jacking system | Mast | ( ) Manual ( ) Hand cranking ( ) Electrical ( ) Pneumatic ( ) Hydraulic | |
| 8 | Height of mast | ( ) 3m ( ) 4.5m ( ) 6m ( ) 7m ( ) 9m ( ) 10m | ||
| 9 | Material of mast | ( ) Carbon steel ( ) SS 304 | ||
| 10 | Install way | ( ) Lateral position ( ) Vertical type | ||
| 11 | Color of mast | ( ) Black ( ) White ( ) Original | ||
| 12 | Power system | Generator | ( ) Gasoline generator | ( ) Open Shelves ( ) Silent |
| 13 | ( ) Diesel generator | ( ) Open Shelves ( ) Silent | ||
| 14 | Starting mode | ( ) Manual start ( ) Electric start | ||
| 15 | Cooling type | ( ) Air cooling ( ) Water cooling | ||
| 16 | Generator power | ( ) 5000W ( ) 8000W ( ) 10000W ( ) 20000W | ||
| 17 | Fuel tank capacity | ( ) Yes ( ) No | ||
| 18 | Output Voltage | ( ) AC220V ( ) AC220V/380V | ||
| 20 | Emergency power | ( ) Lithium battery ( ) Lead-acid battery ( ) Gel battery ( ) AGM battery | ||
| 21 | Control system | Control panel | ( ) Kill switch ( ) Rotary button switch | |
| 22 | Remote control | ( ) Yes ( ) No | ||
| 23 | Remote control method | Remote Controller | ||
| 24 | Rack system | Material | ( ) Carbon steel ( ) SS 304 | |
| 25 | Vehicle model | ( ) Trailer type ( ) Forklift lift | ||
| 26 | Trailer type | ( ) Single shaft ( ) Double shaft | ||
| 27 | Wheel size | ( ) 14 Inch ( ) 15 Inch | ||
| 28 | Drag rod | ( ) Folding ( ) Integrated | ||
| 29 | Tow hook | ( ) 2-inch spherical hanger ( ) 70mm ring | ||
| 30 | Stabilizer bracket | ( ) 4× Manual ( ) 4× Hydraulic | ||
| 31 | Speed | 60 km/h | ||
| 32 | Other function | Function | ( ) Charging shelter ( ) UAV storage shelter ( ) Drainage shelter ( ) Monitoring and inspection ( ) Medical rescue | |
| 33 | Outer size | 2800 × 2400 × 1100 mm | ||
| 34 | Weight | 400 kg | ||
| 35 | Package | ( ) Loose package ( ) Normal wooden box ( ) Non-fumigation wooden box |
||
Buyer’s Guide
How to Choose the Right Mobile Lighting Tower
Key factors include LED vs diesel power, mast height, and deployment environment for construction and industrial lighting applications.
LED vs Diesel Lighting Tower
LED systems provide energy efficiency, while diesel mobile lighting towers are ideal for long-hour heavy-duty operations.
Mast Height Selection
Telescopic mast (6–10m) ensures wide coverage for construction site lighting and outdoor projects.
Power System Choice
Diesel for endurance, battery for silent off-grid lighting environments.
OEM/ODM Mobile Lighting Tower Manufacturer
Custom Portable Lighting Tower Solutions
We are a professional mobile lighting tower manufacturer providing OEM/ODM lighting tower trailer systems for global construction, mining, oil & gas, and emergency i
Lighting: LED / Gas / Halogen
Mast: 3–10m Telescopic
Portable lighting tower for sale including diesel, LED, and battery trailer-mounted systems for construction, mining, roadwork, and emergency applications.
Request a Quote Today
Factory Direct • OEM/ODM Available • Global Shipping Support
Frequently Asked Questions
What is a portable lighting tower used for?
It is used for construction site lighting, mining, roadwork, airports, and emergency rescue lighting applications.
What is a towable lighting tower?
A towable lighting tower is a trailer-mounted mobile lighting system for temporary industrial lighting and outdoor work.
What is the difference between LED and diesel lighting towers?
LED towers are energy efficient, while diesel lighting towers provide long runtime for heavy-duty construction lighting tower applications.
How long can a diesel lighting tower run?
Typically 10–48 hours depending on fuel capacity and load.
What industries use mobile lighting towers?
Construction, mining, oil & gas, infrastructure, airports, and emergency services.
Are lighting towers suitable for harsh environments?
Yes, IP65-rated industrial lighting towers are designed for rain, dust, and extreme conditions.
Is OEM customization available?
Yes, full OEM/ODM customization is available for portable lighting tower trailer systems.
