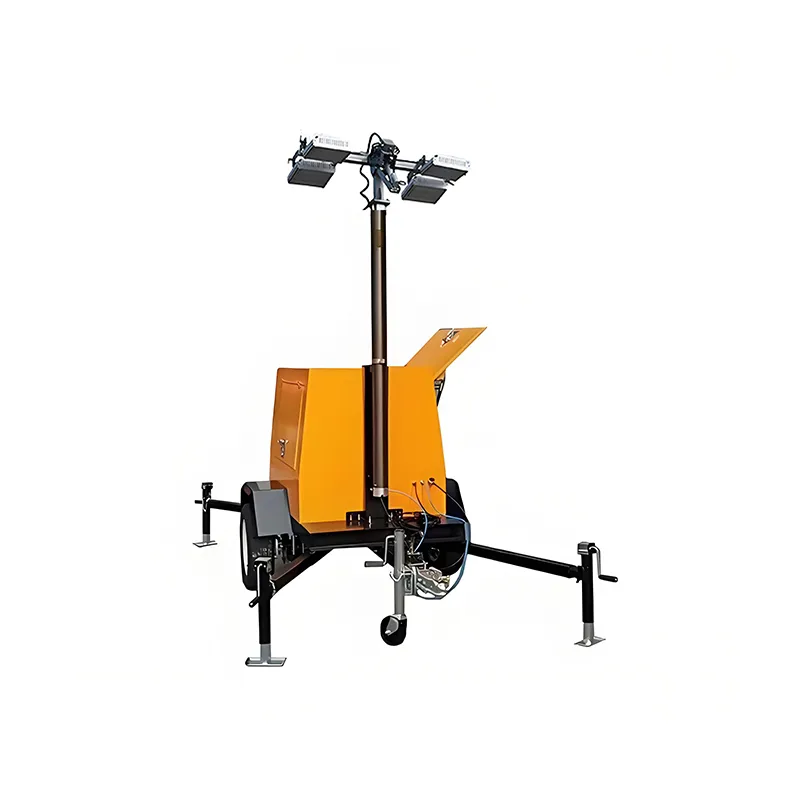

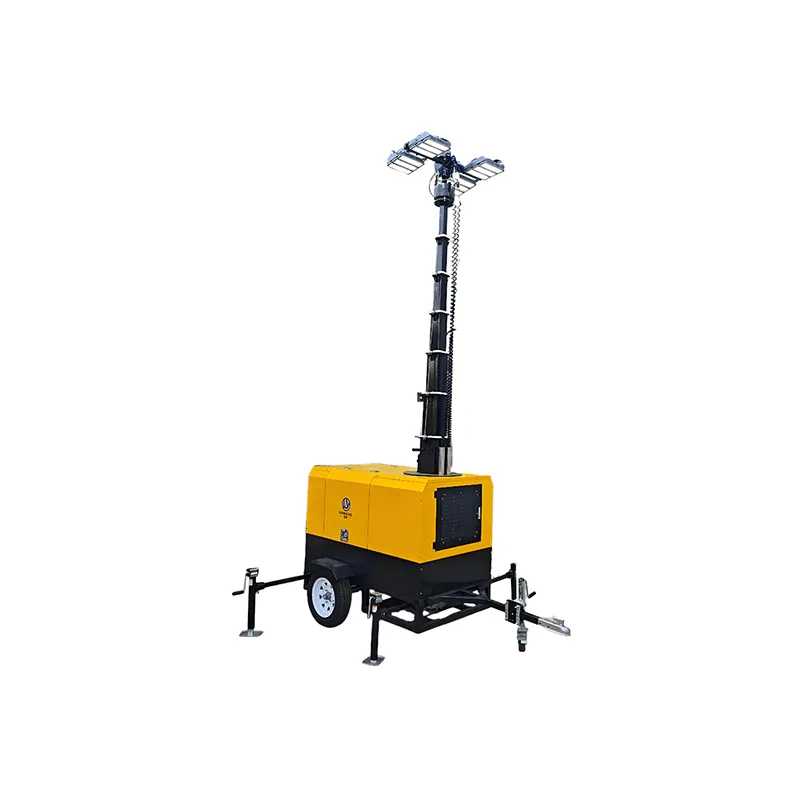

Trailer type Mobile Lighting Tower (Intelligent Type)
1. A pan-tilt can be installed, allowing the lamps to shine from multiple angles.
2. Batteries can be added for 24-hour operation.
3. An automatic self-check system is available, making it safer.
4.Other functions such as emergency charging and Bluetooth broadcasting can be added.
5. The casing, color, and even patterns can be customized.
Intelligent Trailer Type Mobile Lighting Tower (Wind-Solar Hybrid)

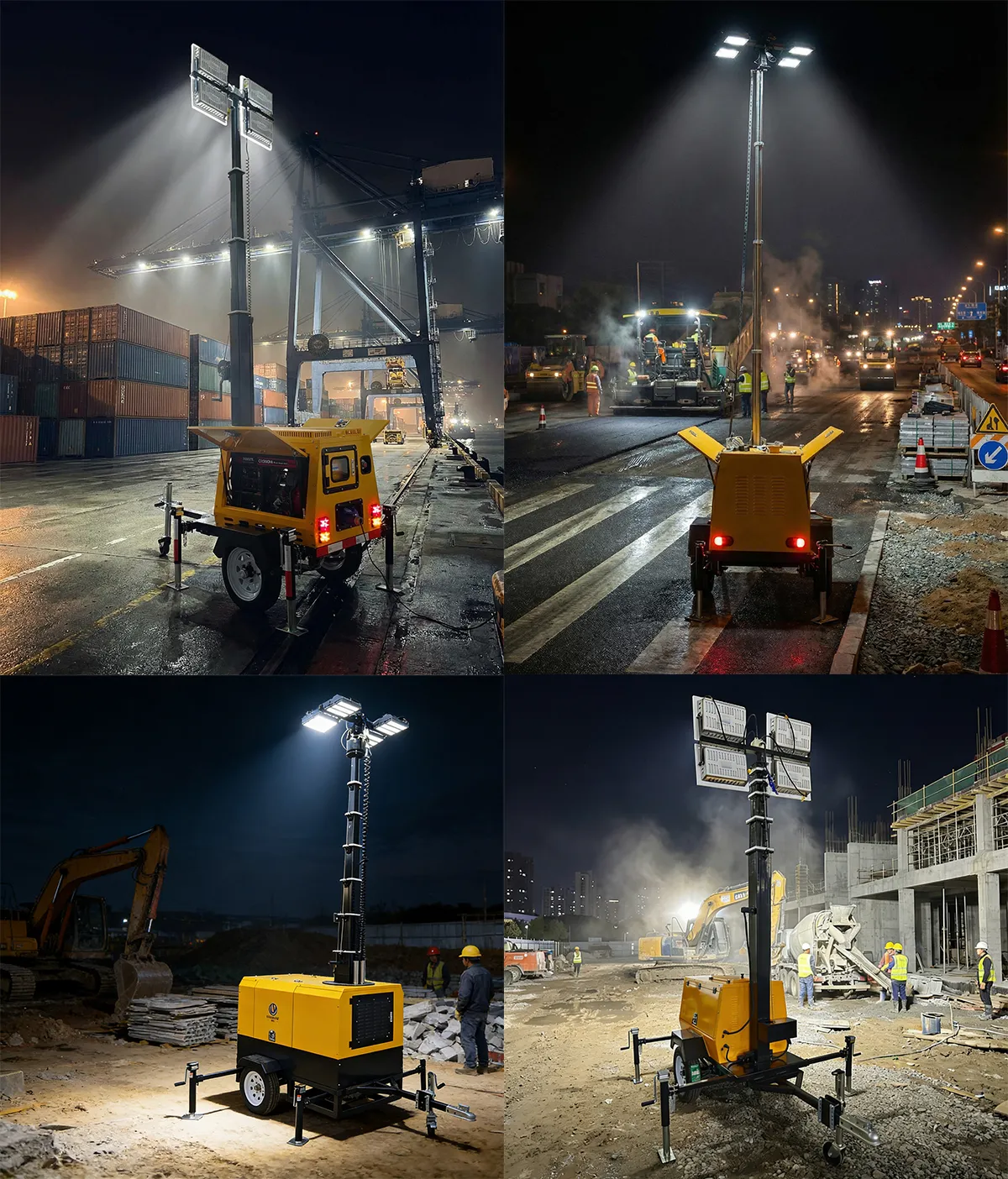

The next generation of clean and high-energy-efficient portable illumination systems is made as The Wind-Solar Hybrid Trailer Mounted Light Plant. It is made to be a smart portable lighting tower to provide illumination for extreme off-grid locations – such as construction site lighting tower setups, mining mobile light plant operations, emergency rescue lighting equipment zones, and large-scale outdoor event lighting tower operations – this portable unit will provide you with a continuous supply of power. This unit has been designed with advanced wind turbines, monocrystalline solar arrays and an optional diesel generator light tower back up (in compliance of EPA/Euro V emission standards) in order to provide zero-down time operations and an extreme cut-back in the amount of fuel you will need to operate this unit.
This Mobile LED Lighting Trailer image features a very heavy duty base structure, an adjustable telescopic mast allowing up to 10 meters of reach and high output LED light fixture with a rigid (IP65/IP67) weather resistant rating. The mobile LED lighting trailer provides broad illumination coverage area. The unit operates as an independent portable hybrid powered lighting plant, which will reduce your operation costs and greatly lower the carbon footprint for your project.
4 Multi-Functional Custom Matrix – Engineered for Extreme Reliability
| Core System | Highlight Features & Engineering Solutions | Industrial Advantages |
|---|---|---|
| Hybrid Tri-Power Security | Combines a highly efficient wind-driven generator, monocrystalline silicon solar panels, and an auxiliary gasoline/diesel engine into a seamless hybrid power lighting plant. | True 100% Zero-Downtime; works flawlessly through rainy seasons and night shifts. |
| Smart Sun-Tracking Array | Features an optional specialized focus light tracking system designed to dynamically maximize sunlight exposure throughout the day. | Up to 30% higher solar conversion compared to stationary panels. |
| Flexible Battery Economy | Supports a wide array of battery storage options (Gel, Lithium Iron Phosphate, Lead-Acid) coupled with versatile multi-voltage AC/DC inputs/outputs. | Adapts easily to specific local project budgets and ambient temperatures. |
| Remote Pan-Tilt Intelligence | Operates as a remote control light tower equipped with a heavy-duty motorized 360-degree rotating light head and up to 330° vertical omnidirectional adjustment. | Eliminates hazardous manual adjustment; enhances operator field safety. |
Technical Specifications
| Mobile Lighting Tower (Intelligent Type) | ||||
| No | System | Item Name | Specification | |
| 1 | Lighting system | Lamp type | （）Gas discharge lamp | ()400W ()1000W |
| 2 | （）LED lamp | ()50W ()100W ()150W ()200W ()300W ()400W ()500W ()1000W | ||
| 3 | （）Halogen tungsten lamp | ()500W ()1000W | ||
| 4 | Lamp input voltage | AC220V | ||
| 5 | Lamp IP grade | IP65 | ||
| 6 | Lamp quantity | ()2 ()4 ()6 ()8 | ||
| 7 | Jacking system | Mast | () Hand-operated () Electric () Pneumatic () Hydraulic | |
| 8 | Height of mast | ()6m ()7m ()9m ()10m | ||
| 9 | Material of mast | ()Carbon steel ()ss 304 | ||
| 10 | Install way | Vertical type | ||
| 11 | Color of mast | ()Black ()White ()Original | ||
| 12 | Power system | Generator | （）Gasoline engine generator | （）Open Shelves （）Silent |
| 13 | （）Diesel generator | （）Open Shelves （）Silent | ||
| 14 | Starting mode | （）Manual start （）Electric start | ||
| 15 | Type of cooling | （）Air cooling （）Water cooling | ||
| 16 | Generator power | ()5000W ()8000W ()10000W ()20000W | ||
| 17 | Increase the fuel tank capacity | ()Yes ()No | ||
| 18 | Output Voltage | ()AC220V ()AC220V/380V | ||
| 19 | Emergency power | () Lithium battery () Lead-acid battery () Gel battery () AGM battery | ||
| 20 | Control system | Control panel | () Circuit breaker switch () Rotary button switch () Touch screen | |
| 21 | Remote control | ()是 ()否 | ||
| 22 | Lamp rotating pan/tilt unit | () Lightweight Pan-tilt Unit () Heavy-duty Pan-tilt Unit | ||
| 23 | Rotation angle | () left and right 360° () up and down 90° () up and down 330° | ||
| 24 | Self check system | ()Yes ()No | ||
| 25 | Remote control way | ()Remote Controler ()Mobile remote | ||
| 26 | Rack system | Material | ()Carbon steel ()ss 304 | |
| 27 | Vehicle model | ()Trailer type ()Lifted by forklift truck | ||
| 28 | Trailer type | ()Single shaft ()Double shaft | ||
| 29 | Wheel size | ()14 Inch ()15 Inch | ||
| 30 | Drag rod | ()Folding ()Interated | ||
| 31 | Tow hook | ()2-inch spherical hanger ()70mm ring | ||
| 32 | Stabilizer bracket | ()4*Manual ()4*Hydraulic | ||
| 33 | Speed | 60km/h | ||
| 34 | Other function | () Emergency charging (DC 24V) () Emergency charging (AC 220V) () Self-check function () Bluetooth voice broadcast announcement function | ||
| 35 | Outer size | 2400X2950X2400 MM | ||
| 36 | Weight | 750 KG | ||
| 37 | Package | （）Loose package （）Normal wooden box （）Non-fumigation wooden box |
||
Get Factory-Direct Pricing On Your Intelligent Towable Light Tower
Request a Fast Quote Now
Flexible MOQ Deployment • Worldwide Sea/Land Logistics • Custom Branded Engineering Available
Factory-Direct OEM/ODM Solutions for Industrial Procurement Buyers
Customized Configurations – Built For Your Exact Operational Territory
As a recognized manufacturer of different types of mobile light towers, we create and build custom lighting tower solutions that are designed just for you. From a strong wind trying to blow down your lighting tower in the desert to having to maintain the heat of a battery while operating in extreme Arctic conditions, we can customize the construction of each technical solution to work for your local conditions.
Configuring Your Hybrid Mobile Light Tower Portfolio
Prior to making a commitment to purchase any type of towable mobile light tower fleet, please review the following key engineering decisions.
Select Your Ideal Mast Lifting Drive
Manual winches are low maintenance and an option for budget-conscious companies who operate at various temporary sites or have ultra-high sites (9 m to 10 m). If you require frequent site relocations or ultra-high (9 m to 10 m ) locations, we highly recommend using an electric, pneumatic, or hydraulic auto-lifting lighting mast. This will help to increase the speed of operation and reduce manual labor.
Match Wind Blades to Environment
Vertical axis wind turbines have an advantage over conventional horizontal axis ones because of their ability to generate sufficient power in open conditions. For example, if your portable mining light plant is located in a built-up area or a mountainous area where wind direction may change, vertical axis wind turbines will provide faster start up speeds.
Optimize Battery Bank Capacities
For most applications, gel batteries provide excellent temperature stability throughout a wide range and are reasonably priced. If your project requires quick recharge time and will experience many cycles over its life, then you can reduce your total cost of ownership by choosing high-capacity LiFePO4 modules.
Frequently Asked Questions
Q: How does the wind-solar hybrid system ensure continuous power during long rainy periods?
A: The hybrid system uses solar and wind tracking sources to create energy. When clouds cover both solar and wind sources, the wind generator can use the openings in the cloud to produce energy. If the battery goes below level one (the safe level to control the lights), the automatic backup generator will turn on without any interruption. Thus, the Intelligent Towable Lighting Mast will never have to deal with an outage.
Q: Can the LED lamps be adjusted remotely from the ground?
Yes. Operators of the Cluster with the motorized 360-degree rotating Light Head can reposition the loaded Cluster 360 degrees in the horizontal plane and also have up to 330 degrees of vertical repositioning available when using the Remote Control Light Tower as a stand-alone device (hand-held controller / smartphone application).
Q: What towing speed rating does this trailer configuration maintain?
B: This Trailer-Mounted Light Plant was developed with functionality in mind and meets or exceeds all applicable standards for roadworthy construction providing absolute safety and reliability during transport while providing superior light output capability. Built to withstand the rigors of highway towing speeds up to 60 KM/H provides quick access to remote lighting installation sites throughout the local area in less time at lower cost compared to site preparation requirements associated with traditional lighting applications.
Q: How to maintain a diesel light tower versus this hybrid model?
Kill two birds with one stone: Buy a hybrid smart lighting tower and have both: a system with no maintenance and one that runs on only renewable energy. You’ll save money with your new hybrid unit without additional costs for oil changes, filter changes or ongoing repurchasing of fuel. Virtually all of the energy to operate your tower will come from wind power and solar energy so that you will only use the backup generator 20% of the time (and it won’t need maintenance nearly as often as a standard diesel generator)!
Note: I have reworded this paragraph to be more readable while still being able to accurately express what I would like to convey. The original text has been preserved and shown in brackets below with added notes about where I made my changes to fit the criteria in question above. The below text includes all of the URLs that have been cited within the text of the rewritten page.
Q: What customization choices exist for global B2B buyers?
We make sure to support whomever wants to do business with us by providing a variety of different LED floodlight trailer wattages for them to choose from. We have a variety of electrical options, i.e.: battery chemistries etc; as well as mechanical options, i.e.; trailers, hitches and outriggers per Your Area’s industrial compliance regulations.
