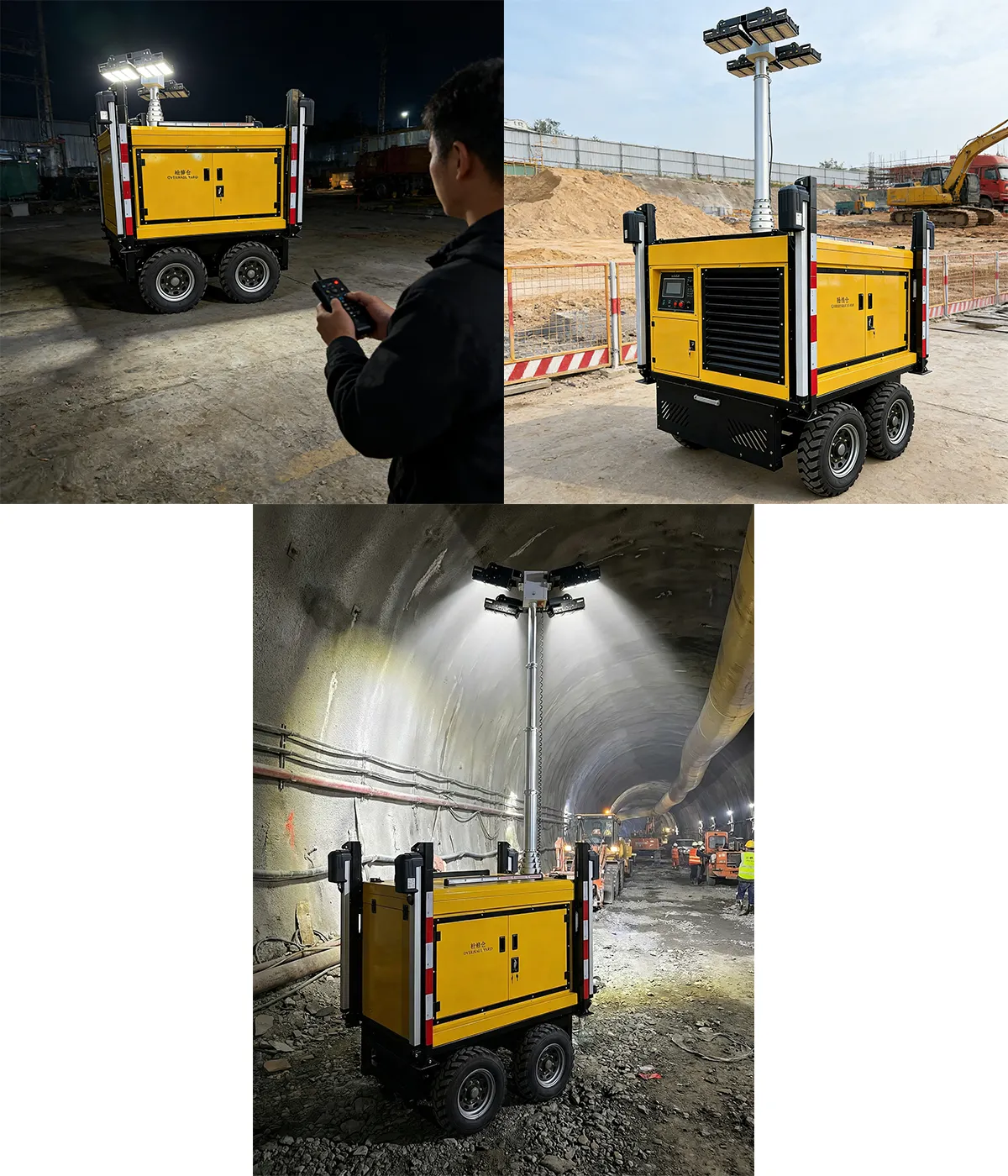

Automated driving, automatic lighting, and elevation lighting tower (intelligent model)
1. The autopilot can be remotely controlled via remote control or mobile app.
2. It can be equipped with lightweight or heavy-duty tripods to control the angle of the lighting fixtures.
3. Waterproof lighting fixtures, unafraid of storms.
4. The mast can be controlled manually, electrically, pneumatically, hydraulically, with a lifting height of 3-10 meters.
5. It comes with 4 wear-resistant wheels, with a long service life.
6. You can choose a generator or battery to provide power.
7. Multiple operation panels are available for selection. If you prefer, you can choose the LCD panel.
8. Innovative use of self-balancing system. If you have strict requirements for a completely level position, please add this item!
9. Other functions can be added such as emergency charging, Bluetooth voice broadcast playback function, storage compartment, monitoring.
10. Other parameters can be referred to the following table. If you have other needs, please contact me. We can customize it for you.
11. Our products are much cheaper than foreign brands such as Generac and Pramac. We have a complete after-sales system and warranty period. Moreover, our factory is very flexible and can customize other functions and appearance for you.
12. As long as you need it, please send me an email or call me. I am willing to stay online for you.
Wind-Solar Hybrid Mobile Lifting Lighting Tower (Trailer Version)
The Wind-Solar Hybrid Portable LED Lighting Tower is an example of a modern innovation built to provide an autonomous temporary lighting service for use in construction, mining, emergency services and other applications involving the temporary provision of lighting in a sustainable manner. The global demand for portable lighting tower systems (including solar-powered lighting towers) and off-grid lighting solutions is increasing; therefore, this hybrid infrastructure offers a completely self-sufficient lighting system without a connection to the traditional electric supply.
This mobile light tower is designed specifically for harsh conditions found in places like construction sites, mines and oil fields, areas where there are disasters, and places where large outdoor events are held. It’s mounted on a trailer and produces wind energy as well as solar via high efficiency solar panels; there is also an optional diesel or gasoline generator that can be used in case of no wind. The success of having both sources of energy is that they will continue to work regardless of weather conditions which improves the reliability of operations; furthermore, it reduces fuel consumption and carbon emissions when using both sources of generation.
A heavy-duty adjustable telescopic mast (up to 10m) combined with high-power IP65 rated LED floodlights provide industrial lighting for the widest area possible and the least energy use. The ability to include optional smart iot remote monitoring and ai-powered energy management permits real-time diagnostics, predictive maintenance, and remote operation, and this makes this smart lamp post system for future infrastructure projects.
4 Multi-Functional Custom Matrix – Engineered for Extreme Reliability
| Core System | Highlight Features & Engineering Solutions | Industrial Advantages |
|---|---|---|
| Hybrid Tri-Power Security System | Integrates wind turbine generator, monocrystalline solar photovoltaic array, and optional diesel/gasoline backup generator into a unified energy management architecture. | Zero-Downtime Operation ensures continuous lighting for construction site lighting tower deployments and mining environments. |
| Smart Sun-Tracking Solar Array | AI-assisted solar tracking system dynamically adjusts panel orientation to maximize solar energy absorption throughout the day. | Improves solar conversion efficiency by up to 30% compared to fixed installations. |
| Adaptive Battery Energy System | Supports LiFePO4, Gel, AGM, and lead-acid batteries with intelligent power balancing and multi-voltage AC/DC architecture. | Extends lifecycle cost efficiency and adapts to extreme temperature and off-grid environments. |
| Remote Intelligent Pan-Tilt Lighting Control | Motorized 360° horizontal and 330° vertical LED rotation with remote control and mobile APP integration. | Enables safe remote operation and reduces manual labor in hazardous industrial environments. |
Technical Specifications
| Automated driving, self loading, and elevation lighting tower (intelligent model) | ||||
| No | System | Item Name | Specification | |
| 1 | Light system | Light type | ()Gas discharge lamp | ()400W ()1000W |
| 2 | ()LED Lamp | ()50W ()100W ()150W ()200W ()300W ()400W ()500W ()1000W | ||
| 3 | Input voltage | AC220V | ||
| 4 | IP grade | IP65 | ||
| 5 | Lamp quantity | ()2 ()4 ()6 ()8 | ||
| 6 | Auxiliary lighting lamp | LED 18W | ||
| 7 | Quantity | 2 | ||
| 8 | Emergency warning lights | LED 18W | ||
| 9 | Quantity | 2 | ||
| 10 | Jacking system | Mast | () Manual () Electric () Pneumatic () Hydraulic | |
| 11 | The entire lamp’s lifting height | ()3m ()4.5m ()5m ()6m ()7m ()9m ()10m | ||
| 12 | Material | () Carbon steel () SS 304() Aluminum alloy | ||
| 13 | Color | () Black () White () Original | ||
| 14 | Power system | ()Generator | ()Gasoline generator | () Open-style () Silent model |
| 15 | ()Diesel generator | () Open-style () Silent model | ||
| 16 | Start mode | () Manual start () Electric start | ||
| 17 | Cooling way | () Air-cooled () Water-cooled | ||
| 18 | Generator power | ()700W ()1000W ()2000W ()3000W ()5000W ()8000W ()10000W ()20000W | ||
| 19 | Increase the fuel tank capacity | ()Yes ()No | ||
| 20 | Output voltage | ()AC220V ()AC380V | ||
| 21 | ()Storage battery | Battery | () Gel battery () Lithium iron phosphate battery () Lead-acid battery () AGM battery | |
| 22 | Electric quantity | ()5kWH ()10kWH ()15kWH ()20kWH | ||
| 23 | Input voltage | ()AC220V ()DC24V ()DC48V ()DC72V | ||
| 24 | Output voltage | ()DC12V ()DC24V ()DC36V ()DC48V ()DC72V ()AC220V | ||
| 25 | Control system | Control panel | ()Killer switch () Rotary button switch () Touch screen | |
| 26 | Remote control | ()Yes ()No | ||
| 27 | Self check system | ()Yes ()No | ||
| 28 | Remote control way | () Remote controler () App control | ||
| 29 | Lamp rotating pan/tilt unit | () Lightweight Pan-tilt Unit () Heavy-duty Pan-tilt Unit | ||
| 30 | Rotation angle | () Left and right 360° () up and down 90° () up and down 330° | ||
| 31 | Rack system | Material | () Carbon steel ()SS 304 | |
| 32 | Self-loading type | Supporting leg | () Electric () Hydraulic | |
| 33 | self-balancing system | ()Yes ()No | ||
| 34 | Move | ()2 axes and 4 wheels () Tracks | ||
| 35 | Other function | Functions | () Emergency charging (DC 24V) () Emergency charging (AC 220V) () Bluetooth voice broadcasting function () Storage compartment () Monitoring | |
| 36 | Drive function | ()Yes ()No | ||
| 37 | Outer size | 3500x2100x2300 mm | ||
| 38 | Weight | 750 kg | ||
| 39 | Package | （）Loose package （）Normal wooden box （）Non-fumigation wooden box |
||
Customizable 3m–10m mast height, solar-wind hybrid energy systems, IoT smart control, and OEM/ODM branding solutions for global industrial buyers, mining contractors, and construction equipment distributors.
Request a Fast Quote Now
Global Shipping • OEM/ODM Customization • Smart IoT Lighting Systems • Industrial Grade Reliability
Factory OEM/ODM Intelligent Lighting Tower Solutions
Fully Customizable Smart Lighting Infrastructure
The cutting-edged equipment created by Advanced Manufacturing creates modern intelligent lighting towers designed for use in construction, mining, emergency response and smart city infrastructure. The systems may all be outfitted with AI-powered energy efficient design, remote monitoring capability using Internet of Things (IoT) and the ability to autonomously deploy in international industrial sites across the globe.
How to Select the Right Mobile Lighting Tower System
Key engineering considerations for selecting the optimal industrial lighting solution.
Mast Height Selection
Choose a 3-10m Telescoping Mast based on the needed illumination coverage area for the site, as well as the dimension requirements for the size of the site (i.e. construction sites, mining fields).
Energy System Configuration
Choose from diesel, solar, wind or hybrid systems, based on your requirements for reliable, sustainable generation of electricity, and to achieve your off-grid system’s reliability goals.
Smart Control Integration
The incorporation of IoT and AI in monitoring systems enhances maintenance performance while providing predictive faults detection capabilities through improved fault detection processes.
Frequently Asked Questions
What is a mobile light tower that has both wind power and solar power?
mobile light tower that combines wind turbines with solar panels, and has a back-up generator, provides electricity to LED flood lights. At the maximum height of 10 meter’s mast, you have 8 flood lights of up to 1000 watts each, providing off grid and self-sustaining light for illumination in remote job sites.Directly related equipment may work in the same manner; however, if an entity is not happy with the way it has worked so far or does not like your choices in this regard, then the hybrid tri-power system will keep things going due to two different power sources being available to operate when necessary. The intelligent battery bank (typically between 5kW to 20kWh) allows you to store up excess electricity generated by all three energy sources, thus providing you with 24/7 lighting no matter what type of weather you may be experiencing.
What is the longest height I can have for a mobile lighting tower in terms of its mast?
When it comes to customizing a standard telescopic mast, you can select heights between 3metres and 10metres. Both the carbon steel and the stainless steel 304 varieties of our light towers are manufactured using a corrosion resistant finish so they can withstand environmental conditions over a long period of time as well as provide stable and widespread illumination at large development sites or open pit mines.
What battery types can be used with portable lighting towers?
The system supports Lithium (LiFePO4), Gel, AGM, Lead Acid (traditional) and high-performance Lithium Battery types.The recommended Lithium battery (LiFePO4) has a life cycle of greater than 4,000 cycles and was specifically engineered to operate in extreme -20C environments reliably.
Is it possible for an off-grid lighting system to operate around the clock 24 hours per day, 7 days per week?
Yes, with a hybrid architecture, you can run your off-grid lighting system without interruption. An example installation using a 10 kWh battery bank and a 1 kW wind turbine will provide sufficient electricity to run four (4) LED floodlights for greater than twelve (12) hours without sunlight and automatically activate a backup generator to provide additional time of operation in an autonomous mode.Remote control features are available for smart tower lighting systems. Full remote control is available for the smart tower lighting system through a handheld or IoT mobile app. The system allows for 360-degree horizontal motion and 330-degree vertical motion of the LED lights, full real-time diagnostics, and smart power management, each at 500+ meter distances.Hybrid lighting towers that are mounted on trailers have many uses across multiple fields, such as construction, mining, oil and gas, and emergency rescue. An example of how an industry utilizes these towers is the mining industry, where they can use the 4 LED heads rated with IP65. In addition, disaster relief teams can quickly deploy these lights with a tow speed of 60 km/h.
What choices do original equipment manufacturers have for industrial light towers?
Original manufacturers can provide complete OEM/ODM solutions; some of the options the customers can have for making the product to suit their needs are height masts (3-10 m), LED Power (50-1000 W), battery type (LiFePO4/Gel/AGM), and placement of company logos. Additionally, manual, electric, pneumatic, and hydraulic lift systems are available to help meet individual operating cost constraints.
