Self-Loading Mobile Lifting Lighting Tower (Standard Model)
1. It can automatically raise its height and be placed on the vehicle.
2. Gasoline or diesel generators are available as options.
3. Various battery materials are also available as options.
4. Remote start is an option.
5. A pan-tilt can be selected to allow the lamp to shine from multiple angles.
6. A self-balancing system is available to withstand bumpy roads and remain level at all times.
7. Additional functions such as charging and monitoring can be added.
Self-Loading Mobile Lifting Lighting Tower for Construction & Emergency Use
The self-loading mobile lifting light tower is your fast way to put out high-intensity gas discharge or LED lighting on construction sites, emergency highway, outdoor job site, and large event locations. As an operationally practical portable light tower generator, the unit provides all of the necessary components to be able to lift and set up the lights without the use of a separate piece of equipment needed to carry them, and the entire lighting system, lifting mast, generator or battery power option, control system, as well as the self-loading rack are included within one mobile unit.
This model (Diesel Standard) of Portable Light Tower supports various lamp wattages and heights, as well as different configurations for power, remote control options, and optional monitoring/emergency charging features. It has an easy-loading design, steering wheels, swivel wheels, and optional hydraulic/electric support legs, making it suitable for use in numerous applications including industrial lighting, road maintenance, construction, emergency rescue, or rental fleets.
Portable Pneumatic Light Tower – Key Engineering Highlights
| Design Feature | Technical Execution | Field Benefit |
|---|---|---|
| Self-Loading Mobile Structure | Integrated rack system with electric or hydraulic supporting legs, optional self-balancing system, and 2 steering wheels + 2 swivel wheels for flexible site movement. | Fast relocation for construction sites, emergency roadwork, and rental fleet deployment. |
| Multiple Lamp Options | Supports gas discharge lamps from 400W to 1000W and LED lamp options from 50W to 1000W, with 2, 4, 6, or 8 lamp configurations. | Provides flexible lighting output for small work zones, large outdoor areas, and industrial light tower diesel applications. |
| Flexible Lifting System | Available with manual, electric, pneumatic, or hydraulic mast systems, with lifting heights from 3m to 10m depending on project requirements. | Helps buyers match the right lighting height for road construction, outdoor events, perimeter lighting, and emergency sites. |
| Generator or Battery Power | Gasoline generator, diesel generator, or storage battery options are available, including open-style, silent model, gel battery, lithium iron phosphate battery, lead-acid battery, and AGM battery choices. | Supports different power strategies for diesel light tower use, low-noise urban projects, or battery-based temporary lighting. |
Technical Specifications
| Self-loading mobile lifting lighting tower (standard model) | ||||
| No | System | Item Name | Specification | |
| 1 | Light system | Lamp type | ()Gas discharge lamp | ()400W ()1000W |
| 2 | ()LED Lamp | ()50W ()100W ()150W ()200W ()300W ()400W ()500W ()1000W | ||
| 3 | Input voltage | AC220V | ||
| 4 | IP grade | IP65 | ||
| 5 | Lamp quantity | ()2 ()4 ()6 ()8 | ||
| 6 | Auxiliary lighting lamp | LED 18W | ||
| 7 | Quantity | 2 | ||
| 8 | Emergency warning lights | LED 18W | ||
| 9 | Quantity | 2 | ||
| 10 | Jacking system | Mast | () Manual () Electric () Pneumatic () Hydraulic | |
| 11 | The entire lamp’s lifting height | ()3m ()4.5m ()5m ()6m ()7m ()9m ()10m | ||
| 12 | Material | () Carbon steel () SS 304 () Aluminum alloy | ||
| 13 | Color | () Black () White ()Original | ||
| 14 | Power system | ()Generator | ()Gasoline generator | () Open-style () Silent model |
| 15 | ()Diesel generator | () Open-style () Silent model | ||
| 16 | Start mode | () Manual start () Electric start | ||
| 17 | Cooling way | ()Air cooling ()Water cooling | ||
| 18 | Generator power | ()700W ()1000W ()2000W ()3000W ()5000W ()8000W ()10000W ()20000W | ||
| 19 | Increase the fuel tank capacity | ()Yes ()No | ||
| 20 | Output voltage | ()AC220V ()AC380V | ||
| 21 | ()Storage battery | Battery | () Gel battery () Lithium iron phosphate battery () Lead-acid battery () AGM battery | |
| 22 | Electric quantity | ()5kWH ()10kWH ()15kWH ()20kWH | ||
| 23 | Input voltage | ()AC220V ()DC24V ()DC48V ()DC72V | ||
| 24 | Output voltage | ()DC12V ()DC24V ()DC36V ()DC48V ()DC72V ()AC220V | ||
| 25 | Control system | Control panel | ()Killer switch () Rotary button switch () Touch screen | |
| 26 | Remote control | ()Yes ()No | ||
| 27 | Self check system | ()Yes ()No | ||
| 28 | Remote control way | () Remote controler () App control | ||
| 29 | Lamp rotating pan/tilt unit | () Lightweight Pan-tilt Unit () Heavy-duty Pan-tilt Unit | ||
| 30 | Rotation angle | () Left and right 360° () up and down 90° () up and down 330° | ||
| 31 | Rack system | Material | () Carbon steel ()SS 304 | |
| 32 | Self-loading type | Supporting leg | () Electric () Hydraulic | |
| 33 | self-balancing system | ()Yes ()No | ||
| 34 | Move | 2 steering wheels + 2 swivel wheels | ||
| 35 | Other function | Functions | () Emergency charging (DC 24V) () Emergency charging (AC 220V) () Bluetooth voice broadcasting function () Storage compartment () Monitoring | |
| 36 | Drive function | ()Yes ()No | ||
| 37 | Outer size | 3600X1620X1650 MM | ||
| 38 | Weight | 550 KG | ||
| 39 | Package | ()Loose package ()Normal wooden box ()Non-fumigation wooden box |
||
Standard model mobile lighting towers with diesel generator, gasoline generator, battery power, LED or gas discharge lamp options, and customizable lifting systems for construction, emergency, and industrial applications.
Request a Quote Today
Flexible MOQ • Global Freight Options • Custom Branding Available
OEM/ODM Services for Wholesale Buyers
Tailored Portable Light Tower Configurations
Buying options for self-loading mobile lift towers include several configurations, including the use of different types of light towers (different lighting outputs), masts (different types), generators (different power ratings), batteries (different capacity sizes), and how they are controlled. Additionally, you have the ability to select other features such as rack construction materials or type of supports for different applications. No matter what type of mobile lifting light you may be looking for, we can work with you to create the ultimate design to meet the needs of your particular application whether that is using diesel or battery power to light your way in road construction or low noise, battery powered lighting at your urban project.
How to Select Your Self-Loading Mobile Light Tower
Select the appropriate lighting tower by aligning the lamp output, lifting height, power source and type of control features with your job site requirements.
Lamp Type – Gas Discharge vs. LED
High-intensity wide-area lighting applications are typically best designed using gas discharge lamps; however, because of their lower energy consumption rates and longer service lives, LED’s have a larger number of wattages available (50W to 1000W). In addition, when compared to gas discharge lamps, when using a light tower for overnight construction, LED portable light tower configurations tend to be a more efficient and effective option for longer periods of time.
Mast Height & Lifting Method
Three to six metres of lifting height will usually be satisfactory for small construction projects or temporary road maintenance, whereas seven to ten metres of mast height will provide cover for larger perimeters, emergency rescue zones and industrial yards. Buyers can select either manual, electrical, pneumatic or hydraulic lifting, depending on their budget and operational needs.
Generator or Battery Power
For long-term operations in a remote location, a diesel generator with light tower will work best, while for less demanding applications it’ll be appropriate to use a gasoline-generator unit. If you need to produce clean and quiet lights without emissions or sound pollution, then battery-operated light options would also be an option to consider.
Frequently Asked Questions
Q1: What is a self-loading mobile lifting lighting tower?
A self operating, mobile, light tower is an electric light source that has been incorporated into various components including the lighting units themselves; the masts pole, the electrical and control system and an inbuilt mobile base for ease of positioning on site and being able to quickly raise or lower as needed. These types of towers are ideal for use at construction sites, during emergency repairs, on industrial yards and for general outdoor lighting.
Q2: What lamp options are available for this portable light tower generator?
B: There are both Gas Discharge and LED light products available for this light tower generator. The LED would have size choices of 50W to 1000W; the Gas discharge would offer 400W and 1000W choices. You can also choose whether to use 2, 4, 6 or 8 Luminaires.
Q3: How does a portable diesel light tower compare with a battery-powered light tower?
A portable solar-powered light tower is perfect for areas where you need portable lighting, need long runtimes, or need lots of job site lighting. A battery-powered light tower is quieter than diesel-powered light towers and produces less pollution making it a good choice for use in urban areas, within buildings, or in locations where there are many people nearby.
Q4: Should I choose manual, electric, pneumatic, or hydraulic lifting?
A manual lift is an economical and simple method of lifting items It is convenient for employees and has an electric or pneumatic lift to help operate equipment. Hydraulic lifts allow you to move larger items on a mobile lighting tower that requires stability, a greater lifting capacity, and frequent movement between job sites.
Q5: What mast height should I choose for construction or emergency lighting?

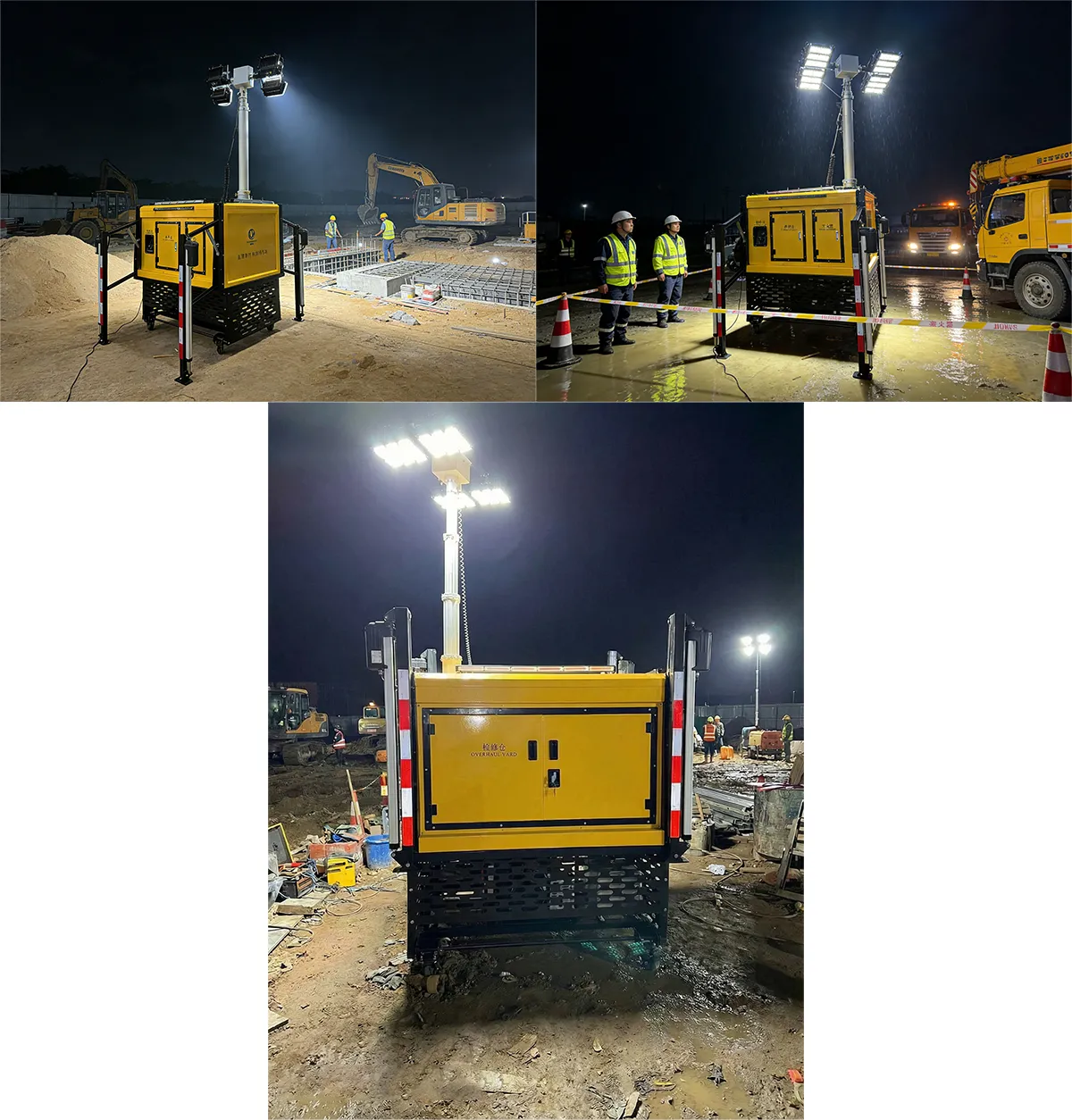

A: In the case of small work areas, recommended heights are from 3 – 4.5 m. For these uses and situations (photo below), mast heights from 5 – 7 m would give more overall coverage. For large industrial yards or as site perimeters, mast heights from 9 – 10 m are recommended.
Q6: Is this mobile light tower suitable for rental fleets?
The standard model is versatile as it allows flexible options for lamps, masts, generators, batteries, controls, and various types of packaging. Therefore it can be used by companies that offer portable light towers for rental, suppliers to construction equipment, companies providing emergency lights, and wholesalers.
Q7: What additional functions can be added to the lighting tower?
A: The optional features include the following: Emergency Re-charging, Bluetooth Voice Broadcast, Storage Compartment , Monitoring, App Control, Remote Control, Self-Check, Pan & Tilt Rotation and Operating Functionality. These enhancements enable you to adjust the lighting tower to accommodate various Industrial types of projects/Construction projects/Emergency Lighting projects.
