Self-loading Mobile Lifting Lighting Tower (Basic Model)
The portable lifting lighting tower will allow you to create temporary outdoor light when needed for night construction, working on road repair, doing repairs after an emergency, working in an industrial location, and want to use light at events or during the summer months, or want to use light at a mine, warehouse, or remote jobsite. You will be able to provide lights to these locations with just one lighting source that combines mobile lighting, pneumatic mast, self-loading structure, gas power generator, auxillary lights, emergency warning lights and an easy to deploy lighting system.
The Mobile Light Tower is the preferred option for users who require ease of transportation, rapid deployment and dependable wide area illumination due to its superior construction, including a gas-discharge bulb and LED bulb options, a lift height of 3m to 10m, IP65 outdoor protection, support by auxiliary LEDs, emergency flashers, electric support legs, and a carbon steel frame. The Mobile Light Tower can be used for off-grid lighting applications, portable construction lighting, temporary work site lighting, emergency lighting, and high-powered outdoor work.
Self-loading Mobile Light Tower – Key Engineering Highlights
| Design Feature | Technical Execution | Field Benefit |
|---|---|---|
| Self-loading Mobile Structure | Carbon steel rack system with electric supporting legs, 2 swivel wheels, and 2 fixed wheels for convenient self-loading movement and field deployment. | Easy relocation for construction sites, road repair zones, industrial yards, mining areas, temporary worksites, ports, and outdoor event venues. |
| Basic Control System | Control panel options include killer switch and rotary button switch, with optional remote control by remote controller. | Supports simple and reliable operation for mobile construction lighting, emergency site lighting, and temporary outdoor illumination. |
| Pneumatic Lifting Mast | Pneumatic aluminum mast with lifting height options of 3m, 4.5m, 5m, 6m, 7m, 9m, and 10m. | Provides elevated wide-area lighting for night construction, road maintenance, rescue work, inspection tasks, and portable worksite lighting. |
| Gas Discharge or LED Lighting | Gas discharge lamp options include 400W and 1000W. LED lamp options include 50W, 100W, 150W, 200W, 300W, 400W, 500W, and 1000W. Lamp quantity can be configured as 2 or 4. | Matches different lighting demands, from energy-saving LED work lighting to high-intensity temporary outdoor lighting. |
| Auxiliary and Warning Lights | Equipped with 2 auxiliary LED 18W lighting lamps and 2 LED 18W emergency warning lights for additional visibility and jobsite safety. | Supports safer night operation for maintenance lighting, emergency repair, road work, and outdoor temporary lighting. |
| Gasoline Generator Power | Open-shelf gasoline generator with electric start, generator power options from 700W to 5000W, optional increased fuel tank capacity, and output voltage of AC220V or AC220V/380V. | Suitable for off-grid temporary lighting, long-duration night work, emergency lighting, and remote site illumination. |
Technical Specifications
| Self-loading mobile lifting lighting tower (basic model) | ||||
| No | System | Item Name | Specification | |
| 1 | Light system | Lamp type | ()Gas discharge lamp | ()400W ()1000W |
| 2 | ()LED Lamp | ()50W ()100W ()150W ()200W ()300W ()400W ()500W ()1000W | ||
| 3 | Input voltage | AC220V | ||
| 4 | IP grade | IP65 | ||
| 5 | Lamp quantity | ()2 ()4 | ||
| 6 | Auxiliary lighting lamp | LED 18W | ||
| 7 | Quantity | 2 | ||
| 8 | Emergency warning lights | LED 18W | ||
| 9 | Quantity | 2 | ||
| 10 | Jacking system | Mast | Pneumatic | |
| 11 | The entire lamp’s lifting height | ()3m ()4.5m ()5m ()6m ()7m ()9m ()10m | ||
| 12 | Material | Aluminium | ||
| 13 | Color | Original | ||
| 14 | Power system | Generator | Gasoline generator | Open shelves |
| 15 | Start way | Electric start | ||
| 16 | Generator power | ()700W ()1000W ()2000W ()3000W ()5000W | ||
| 17 | Increase the fuel tank capacity | ()Yes ()No | ||
| 18 | Output voltage | ()AC220V ()AC220V/380V | ||
| 19 | Control system | Control panel | ()Killer switch ()Rotary button switch | |
| 20 | Remote control | ()Yes ()No | ||
| 21 | Remote control way | Remote Controler | ||
| 22 | Rack system | Material | Carbon steel | |
| 23 | Self-loading type | Supporting leg | Electric | |
| 24 | Move | 2 swivel wheels, 2 fixed wheels | ||
| 25 | Outer size | 2600X1500X1500 | ||
| 26 | Weight | 420 KG | ||
| 27 | Package | （）Loose package （）Normal wooden box （）Non-fumigation wooden box |
||
Self-loading mobile lighting towers with gas discharge or LED lamps, 3m to 10m pneumatic aluminum mast height, IP65 outdoor protection, gasoline generator power, auxiliary LED lamps, emergency warning lights, electric supporting legs, and OEM/ODM customization options.
Request a Quote Today
Flexible MOQ • Global Freight Options • OEM/ODM Customization • Export-Ready Packaging
OEM/ODM Services for Wholesale Buyers
Custom Self-loading Mobile Lifting Lighting Tower Configurations

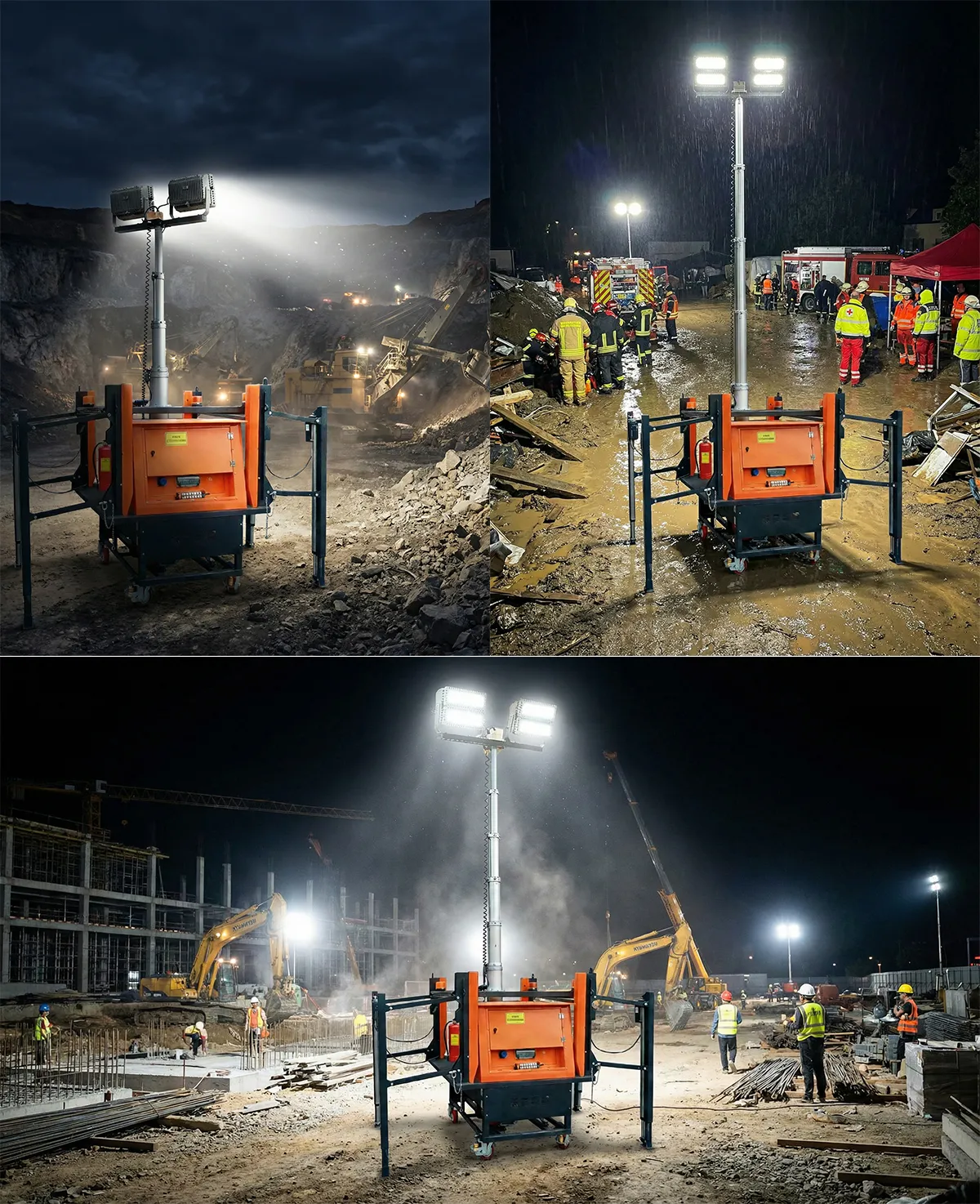

Construction sites, Road maintenance, Emergency rescue missions, Industrial yards, Outdoor events, Mining operations, Airport maintenance, Port operations, Warehouse night work, Temporary remote work sites… all of these require lighting. That’s why we’ve created a mobile, self-assembled light tower to fit any and all of your needs.
How to Select a Self-loading Mobile Lifting Lighting Tower
Before deciding on the type of self-propelled light tower, one needs to evaluate lamp type, wattage of each lamp, height of the mast, generator capacity, method of transporting the equipment, outdoor protection class level, accessories (such as additional lights or sound effects), warning lights, and packing specifications.
Lamp Type, Wattage & Quantity
LED lights can be used for temporary lighting, road construction lighting, warehouse night work, and similar types of temporary lighting for longer periods. The available wattage options for LED are 50w, 100w, 150w, 200w, 300w, 400w, 500w, and 1000w. Gas discharge lamps are also available for temporary, high-intensity lighting, with 400w and 1000w versions. Depending on the size of your job site, you will choose 2 or 4 lights for your desired coverage area. The unit comes with 2 additional 18w LED lights and 2 additional emergency LED lights (18w).
Mast Height, Pneumatic Lifting & Outdoor Protection
The different heights for the masts are: 3m, 4.5m, 5m, 6m, 7m, 9m, and 10m. When using the lower height, it is ideal for providing light into smaller working areas (for example, for setting up temporary lighting while doing repairs). The higher mast also provides a greater amount of light to cover a wider work area (for example, construction sites, roadways being repaired, large outdoor events, mine sites and industrial yards). The pneumatic mast is made of aluminum and has been manufactured to provide good lifting capability and stability. The IP65 (dust-proof and weather-resistant) lighting system can be used outdoors for temporary use.
Generator Power, Self-loading Structure & Application
The open-sided gasoline generator with electric start is a great option for remote job sites, extended period lighting outdoors, road maintenance, and off-grid nighttime operation. This generator is available in various options of 700 watts, 1000 watts, 2000 watts, 3000 watts, and 5000 watts. You will also have the option to select either ac220v output voltage (or) ac220v/380v output voltage along with an optional larger fuel tank capacity. The self-load design uses supported legs that can be electrically supported along with 2 of each wheel type (fixed and swivel) for enhanced mobility around the job site and transport convenience.
Frequently Asked Questions
Q: What is the Self-loading Mobile Lifting Lighting Tower used for?
B: From the temporary work site and mine to the airport and beyond, portable temporary lighting can be utilized to meet your needs.
Q: What does self-loading mean for a mobile lighting tower?
A: The unit can self-load to allow for easier transportation, loading, unloading and transfer from site to site while using an electric leg system with two swivel and two fixed wheel assemblies to improve mobility and efficiency for setting up in the field.
Q: What lamp types are available?
A: The system can utilize either gas discharge lighting or LED lighting. The gas discharge lamp options are 400W or 1000W. The LED lamp options include 50W, 100W, 150W, 200W, 300W, 400W, 500W, and 1000W. You can choose to install either two or four lamps within the system.
Q: How high can the lifting mast reach?
A: There are various options for maximum lift height. The maximum lift heights are 3 m, 4.5 m, 5 m, 6 m, 7 m, 9 m, and 10 m. The mast has an aluminum structure with pneumatic cylinders and a factory-painted finish.
Q: What power options are available?
1) This generator uses an electric-start open-frame gasoline engine. In addition, it has a wide selection of added electrical power options from 700W to 5,000W. It has the ability to supply two different types of output voltage, either 220V or 220V/380V, any of which can be increased depending on the fuel tank size requested.
Q: Is the basic model suitable for outdoor use?
A: Yes, this lighting product has an IP65 rating so you can safely use it to illuminate outside construction sites or for street work or emergency repairs. You can also use the fixture for industrial work sites and as temporary light on the outside of buildings.
Q: Does this model include auxiliary lighting and warning lights?
A: Yes, the 2 auxiliary LED 18W lighting lamps and the 2 LED 18W emergency warning lights, which are both part of this model, will help improve nighttime visibility and safety during emergency repairs.
Q: Is this self-loading mobile light tower suitable for off-grid lighting?
Yes! This lighting tower has the capacity to provide off-grid, mobile, and bountiful light by offering numerous high-output lighting solutions. These include a wide range of uses including portable gas lighting collections, portable gas lighting sources (with high output), LED lamps, emergency/Warning lights, and a self-loading Portable structure.
Q: Can this unit be customized for OEM/ODM projects?
A: Customization options for OEM and ODM products may consist of lamp type, wattage, number of lamps, mast height, power generator, output voltage, fuel tank capacity, control panel or remote control, rack structure, wheel layout, color of product, logo of company as well as export packaging.
