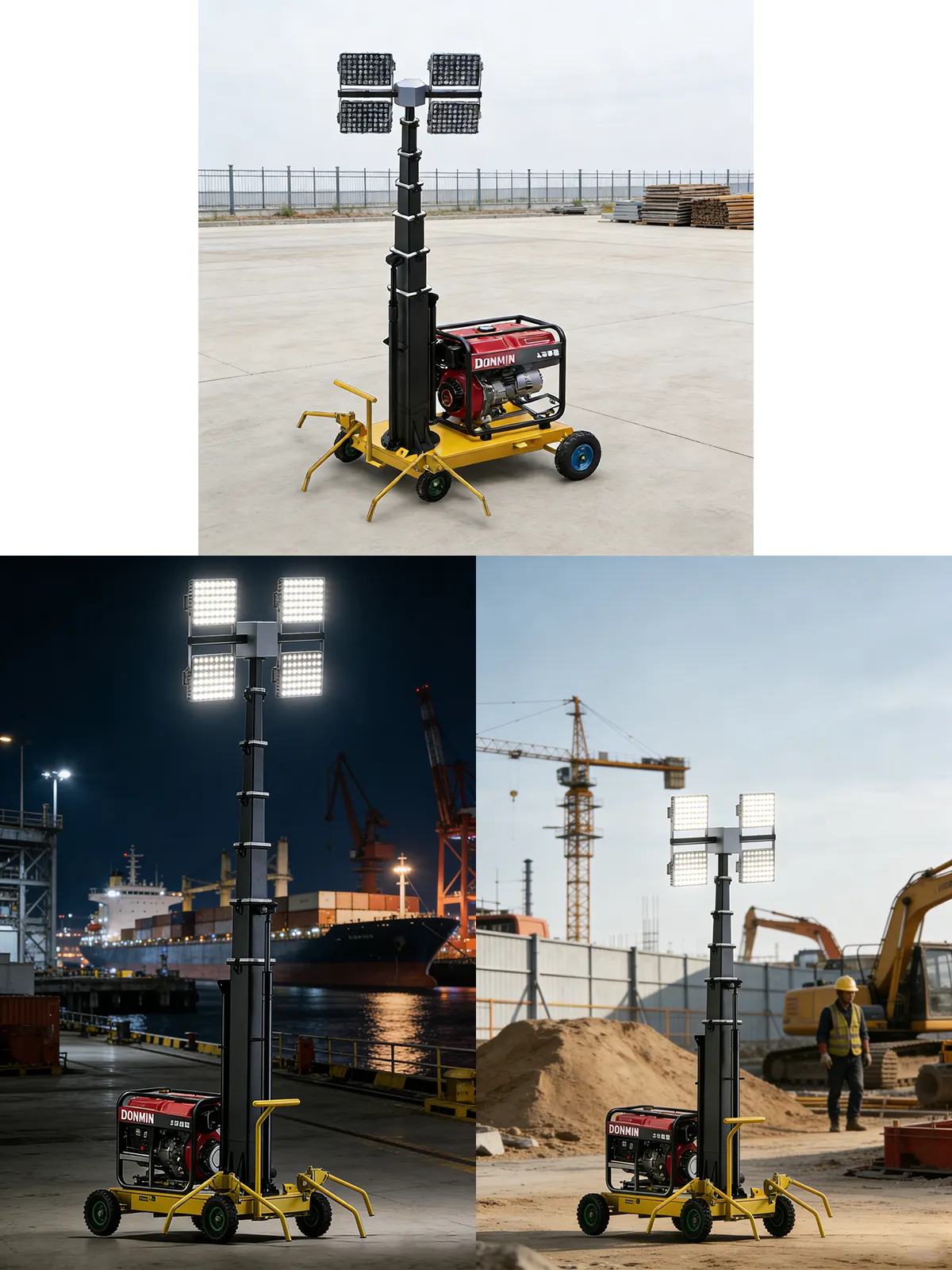

Cart-Type Hydraulic Lifting Mobile Lighting Tower
This strong mobile lighting tower is cart mounted and has a completely hydraulic mast system. This means it can raise its four high-power LED, gas/halogen discharge or halogen lights up to 7 m in height. Built specifically for large construction sites, industrial maintenance, and event logistics, this hydraulic lift does away with the need for cranking by hand; by either pumping a couple pumps or using an electric power pack, you can have your light array at its full height from the transport position in no time.
The hydraulic cart light tower features welded steel frame construction, manual stabilizer legs, rainproof canopy, and can be either carbon steel or stainless steel finished. The light tower is capable of creating quality light in all weather conditions. There is an optional explosion‑proof fixture rating which makes it safe to use in petrochemical plants and confined spaces where the safety of the product must meet the highest level of compliance.
Hydraulic Cart Light Tower – Engineering Strengths
| Feature | Technical Description | Operational Advantage |
|---|---|---|
| Hydraulic Mast Lift | Heavy‑gauge steel or stainless steel mast raised by hydraulic ram with manual or electric pump; heights of 4.5 m, 6 m, or 7 m available. | Zero manual lifting effort; safe for repeated daily repositioning. |
| Multi‑Lamp Configuration | Supports 2 or 4 fixtures; choose from gas discharge, LED, or halogen tungsten lamps ranging from 100 W to 1000 W, all IP65 rated. | Customizable beam spread and intensity for any site layout. |
| Explosion‑Proof Option | Optional certified explosion‑proof light fixtures for Zone 1 / Zone 2 hazardous area operation. | Compliant safety for oil & gas and chemical processing. |
| All‑Terrain Cart Mobility | Welded frame with large wheels, manual stabilizer outriggers, and an optional electric assist drive system. | Moves easily across uneven ground and compacted gravel. |
Technical Specifications
| No. | System | Parameter | Available Options |
|---|---|---|---|
| 1 | Lighting System | Gas Discharge Lamp | 100W / 150W / 250W / 400W / 1000W |
| 2 | LED Lamp | 100W / 150W / 200W / 300W / 400W / 500W / 1000W | |
| 3 | Halogen Tungsten Lamp | 500W / 1000W | |
| 4 | Input Voltage | AC220V | |
| 5 | IP Grade | IP65 | |
| 6 | Explosion‑Proof Fixture | Yes / No | |
| 7 | Lamp Quantity | 2 / 4 | |
| 8 | Jacking System | Mast Type | Hydraulic |
| 9 | Mast Height | 4.5m / 6m / 7m | |
| 10 | Mast Material | Carbon Steel / SS304 | |
| 11 | Mast Color | Black / White / Metal Original | |
| 12 | Power System | Gasoline Generator | Open Shelves / Silent |
| 13 | Diesel Generator | Open Shelves / Silent | |
| 14 | Start Mode | Manual / Electric | |
| 15 | Cooling Type | Air Cooling | |
| 16 | Generator Power | 1000W / 2000W / 3000W / 5000W | |
| 17 | Extended Fuel Tank | Yes / No | |
| 18 | Output Voltage | AC220V / AC220V&380V | |
| 19 | Control System | Operation Panel | Killer Switch / Rotary Button / Touch Screen |
| 20 | Remote Control | With / Without | |
| 21 | Rack System | Frame Material | Carbon Steel / SS304 |
| 22 | Frame Color | Yellow / Other Original Color | |
| 23 | Stabilizer Bracket | Manual / Electric | |
| 24 | Moving Wheel | Wheel | |
| 25 | Rainproof Cover | With / Without | |
| 26 | Supporting Leg | Manual | |
| 27 | Electric Assist | No / Electric Assist System | |
| 28 | Outer Dimensions | 2600 × 900 × 1460 mm | |
| 29 | Net Weight | 320 kg | |
| 30 | Package | Loose / Normal Wooden Box / Non‑Fumigation Wooden Box | |
Configure your explosion‑proof, multi‑lamp, or electric‑assist unit. We ship globally with full documentation and after‑sale support.
Request a Custom Quote
Low MOQ • Worldwide Delivery • OEM Branding Included
OEM/ODM Services for Volume Buyers
Custom Hydraulic Tower Manufacturing
Each hydraulic cart mobile light tower is built according to precise customer specifications at our facility. The type of lamp, mast material, brand of generator, and style of control panel are all chosen by you. Additionally, we can provide third-party certified safety in the form of explosion-proof configurations and complete testing report for each shipment.
Choosing Your Hydraulic Cart Lighting System
Three key parameters to define before ordering your cart‑type light tower.
Lamp Technology & Quantity
LED lighting uses less energy and has a longer life than other types of lamps, so it is ideal for continuous lighting. Gas-discharge lamps produce a warmer colour temperature which is preferable for doing detailed inspections. Halogen tungsten lamps are a good value for short-duration applications. Use 2- lamp fixtures to provide concentrated lighting only and 4-lamp fixtures to provide lighting over a larger area.
Mast Height & Material
4.5m, 6m and 7 m high masts are available to illuminate large buildings, compounds and to clear a majority of construction equipment and temporary structures. If the installation of an illuminated outdoor sign is to occur in coastal areas or in aggressive chemical environments, an SS304 stainless steel option should be selected; however, when the installation will occur inland and in more general type locations, a carbon steel pole that is powder coated is also available.
Generator & Mobility Options
When calculating the total power needed for a generator, you’ll want to take into account both the wattage of all lamps and add 20% (totaling 20% more) for overhead. A 3000 watt generator has no problems powering four 400 watt LED lamps. Consider adding an extended fuel tank so that your unit can run for a full night. If you need to move your unit often and are moving across large distances, the electric assist will greatly reduce operator fatigue.
Frequently Asked Questions
Q: How does the hydraulic lifting system work?
A: A hydraulic hand pump or an optional electric power pack can be used to raise the mast; to lower the mast, there is a release valve that allows for controlled lowering. The system is self-locking at all heights, eliminating the need for mechanical pins or latches.
Q: Can this cart‑type light tower be used in explosive atmospheres?
A: Yes, the explosion-proof luminaire options can be used in Zone 1 or Zone 2 Hazardous Locations, so long as they’ve been (ordered with) explosion-proof lights /media/en/products/explosion-proof-light-fixtures. Please indicate what Certification Standard you will require upon order (ATEX, IECEx).
Q: What is the difference between this cart model and a trailer light tower?
A: This hydraulic mobile lighting tower has a compact pushcart base for repositioning manually; it’s not for towing on public highways. For lighting towers that can be towed at highway speeds, or that are larger than this product line, please review our range of diesel or hybrid light towers that will require a trailer.
Q: Is assembly required upon delivery?
A: The entire tower is pre-assembled at the manufacturer, has undergone factory testing, and is ready for use. Prior to using it for the first time, you need to attach the stabilizing outriggers (which may have been packaged separately for shipping efficiency) and connect the fuel line from your generator. Complete instructions for set-up will be included.
