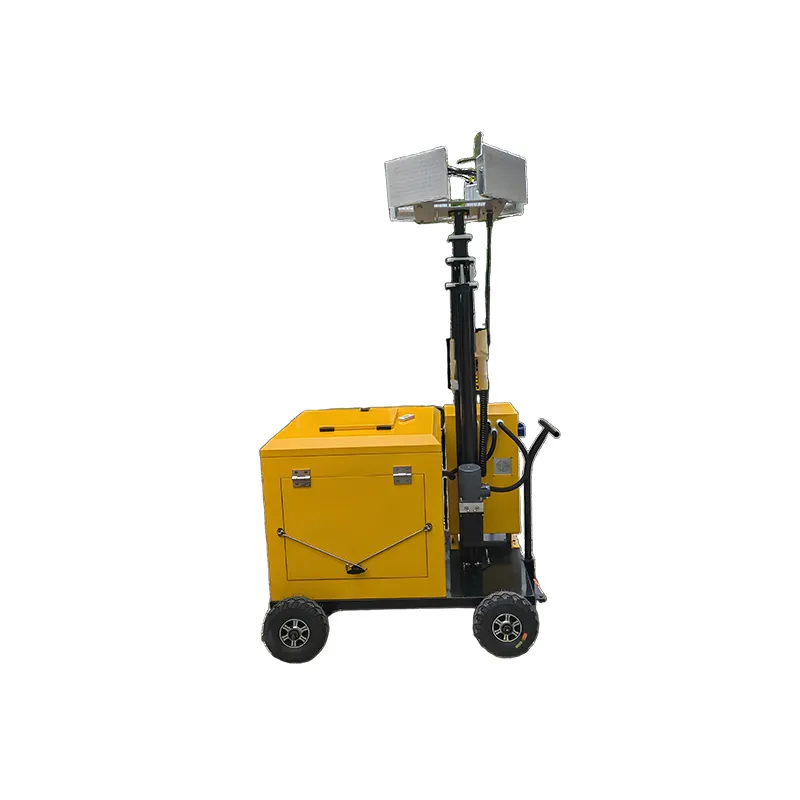

Cart-Type Mobile Lighting Tower (Smart Version)
The automated mobile light tower is efficient in its operation, automated in its control and easy to set up, making it very useful for trying conditions. This is because there is a touch panel for controlling the light, diagnostics available through self-check, and broadcast capability via Bluetooth from anywhere in the vicinity. The light tower is no longer viewed as an utility but rather as a well-designed tool that supports the effective and efficient management of worksites. The light is raised quickly and silently to heights using the winch, jogger, pneumatic or hydraulic mast by simply pressing a button. Therefore there is no longer the need to rely on human muscle to do the lifting of light fixtures . The electric winch for operating the equipment is very efficient at raising the light units with minimal labour required.
The light tower is fitted with support for up to four LED (IP65) lights, gas titled discharge light fixtures and/or halogen type light fixtures; also a motorised pan and tilt unit allows the tower to rotate on 360 degrees and tilt up to 330 degrees. The remote targeting of lights from above allows operators to aim the lights from the ground level. Other features include an explosion proof option, an additional capacity fuel tank; and an electric assist drive; this means that the light tower is suitable for use in petroleum & chemical zone exploration; or large industrial infrastructure projects that require safety & high precision performance.
Smart Mobile Light Tower – Intelligent Features
| Feature | Technical Execution | Operational Benefit |
|---|---|---|
| Multi‑Mode Mast Actuation | Electric winch, electric jogger, pneumatic, or hydraulic lifting – all operated from the control panel or remote. | One‑touch deployment without physical exertion; ideal for frequent repositioning. |
| Touch‑Screen & Self‑Check | Rotary switch or full touch‑screen interface with optional automated self‑diagnostic system that monitors voltage, hours, and fault codes. | Predictive maintenance reduces unplanned downtime. |
| Motorized Pan‑Tilt & Remote Aiming | Lightweight or heavy‑duty pan‑tilt unit with 360° horizontal and up to 330° vertical rotation, controlled via handheld remote or mobile app. | Adjust light direction from a safe distance; no climbing or manual repositioning. |
| Emergency Charging & Bluetooth Broadcast | Optional DC24V or AC220V emergency output ports and integrated Bluetooth voice broadcasting for site announcements. | Functions as a multi‑purpose site hub beyond lighting alone. |
Technical Specifications
| No. | System | Parameter | Available Options |
|---|---|---|---|
| 1 | Lighting System | Gas Discharge Lamp | 100W / 150W / 250W / 400W / 1000W |
| 2 | LED Lamp | 100W / 150W / 200W / 300W / 400W / 500W / 1000W | |
| 3 | Halogen Tungsten Lamp | 500W / 1000W | |
| 4 | Input Voltage | AC220V | |
| 5 | IP Grade | IP65 | |
| 6 | Explosion‑Proof Fixture | Yes / No | |
| 7 | Lamp Quantity | 2 / 4 | |
| 8 | Jacking System | Mast Type | Electric Winch / Electric Jogger / Pneumatic / Hydraulic |
| 9 | Mast Height | 4.5m / 6m / 7m | |
| 10 | Mast Material | Carbon Steel / SS304 | |
| 11 | Mast Color | Black / White / Original | |
| 12 | Power System | Gasoline Generator | Open Shelves / Silent |
| 13 | Diesel Generator | Open Shelves / Silent | |
| 14 | Start Mode | Manual / Electric | |
| 15 | Cooling Type | Air Cooling | |
| 16 | Generator Power | 1000W / 2000W / 3000W / 5000W | |
| 17 | Extended Fuel Tank | Yes / No | |
| 18 | Output Voltage | AC220V / AC220V&380V | |
| 19 | Control System | Control Panel | Killer Switch / Rotary Switch / Touch Screen |
| 20 | Remote Control | With / Without | |
| 21 | Pan‑Tilt Unit | Lightweight / Heavy‑Duty | |
| 22 | Rotation Angle | 360° L/R | 90° or 330° Up/Down | |
| 23 | Self‑Check System | Yes / No | |
| 24 | Rack System | Frame Material | Carbon Steel / SS304 |
| 25 | Frame Color | Yellow / Other Original Color | |
| 26 | Stabilizer Bracket | Manual / Electric | |
| 27 | Moving Wheel | Wheel | |
| 28 | Rainproof Cover | With / Without | |
| 29 | Supporting Leg | Manual | |
| 30 | Electric Assist | No / Electric Assist System | |
| 31 | Additional Functions | Emergency Charging DC24V / AC220V | Self‑Checking | Bluetooth Voice Broadcasting | |
| 32 | Outer Dimensions | 2600 × 900 × 1460 mm | |
| 33 | Net Weight | 350 kg | |
| 34 | Package | Loose / Normal Wooden Box / Non‑Fumigation Wooden Box | |
Fully automated electric mast, touch‑screen controls, and remote pan‑tilt. Configure your intelligent lighting unit today.
Request a Custom Quote
Flexible MOQ • OEM Branding • Global Logistics • Technical Support Included
OEM/ODM Smart Tower Solutions for Distributors
Tailor‑Made Intelligent Lighting Platforms
Every smart mobile light tower is built to match the exact amount of automation demanded by your project. Each component can be completely tailored, whether it is an electric winch mast and rotary switch combination or a fully integrated networking system that has touch screen, self-diagnostic capabilities through Bluetooth voice and electric stabilisers. We also offer standard OEM services such as explosion, proof certification on our generator brand and paint finishes.
Configuring Your Smart Light Tower
Three strategic choices to maximise the return on your intelligent lighting investment.
Mast Automation Level
models of Electric winches have an ideal price/performance for a given job on most construction sites. For rapid and smoothest lifting cycles between moves of a tower, hydraulic winches should be used. When compressed air source(s) are present at the site, pneumatic mast(s) are the best choice of mast for electric lift applications.
Control Interface & Intelligence
A rotational switch panel is easy to use for routine tasks, while the touch screen has self-diagnostic capability, reporting on runtime, and displaying fault codes – very helpful for a fleet manager with multiple machines. Consider adding Bluetooth for voice-announcement from the tower, should it also be utilized as an announcement system at the site.
Pan‑Tilt & Remote Control
In order to light up different areas of work throughout a shift, order the heavy-duty pan-tilt with remote controls. It will allow the lamp to be re-aimed in seconds, without having to lower the mast. Electric assist drive will make it easy to re-position the entire tower without any physical effort on the part of the operator.
Frequently Asked Questions
What makes this lighting tower “smart”?
Advanced Features: Features include electric or hydraulic lift operation (fully functional), an optional touchscreen remote control panel with self-diagnostics, remote pan/tilt aiming with a handheld device and/or mobile app, and other features, including Bluetooth-enabled speakers (‘broadcast’ to external devices), emergency battery charging ports and more.
Can the mast be raised without a generator running?
AnaWhy electric juggernauts require an electrical outlet or generator for operation. Pneumatic juggernauts require a source of compressed air while hydraulic juggernauts can be used manually as back-up solutions.Talk to Your Company’s Power Representative Before You Choose A Lift Solution For Your Project Printed Page 1 of 2.
Is the pan‑tilt unit compatible with all lamp types?
The lightweight and heavy duty pan-tilt units can support any combination of LED, gas discharge or halogen fixtures as long as they meet the specified weight limit. Use the heavy duty version for configurations with four lamps or larger 1000 W lights.
What does the self‑check system monitor?
An optional self-check system constantly checks for generator voltage, light bulb condition, mast location sensors, total accumulated run time. The system provides alert messages on the touch display, and can be set up to transmit fault codes back to a central fleet management system to reduce the number of unplanned breakdowns.
