Self-Loading Ups New Energy Mobile Cabin
1. Not only an emergency beacon, but also an emergency center.
2. Comes with a tent, resistant to wind and rain, very suitable for large-scale meetings, camping and rest.
3. Equipped with a LED screen, capable of remote monitoring and discussion during meetings.
4. Can be moved short distances using wheels or tracks.
5. Optional self-balancing system, allowing for smooth meetings even on uneven roads.
Self-Loading UPS New Energy Mobile Cabin

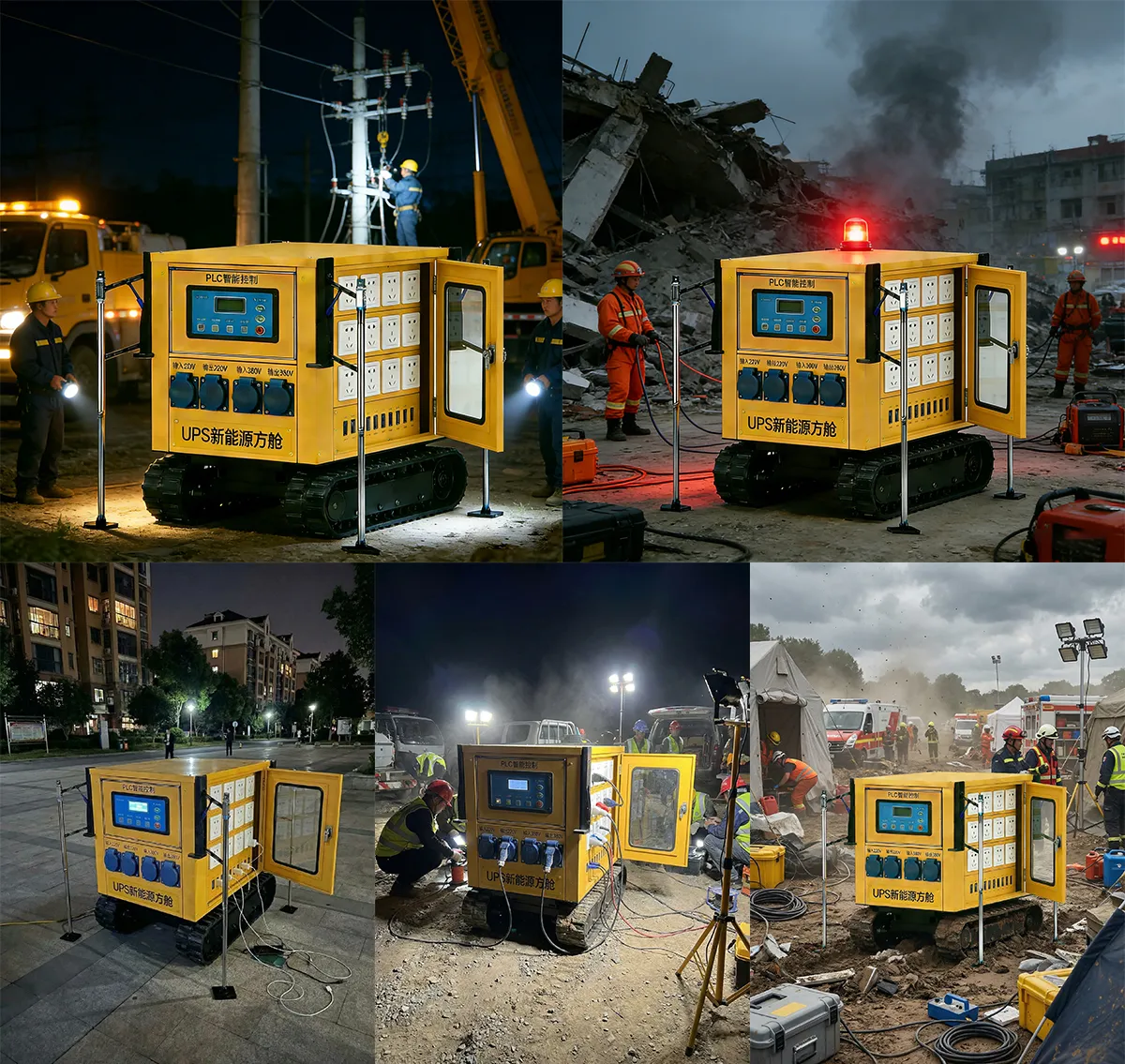

As a result of deploying three of these units in response to the loss of grid power due to a typhoon, one regional government in Southeast Asia was able not only to have emergency lighting but also to establish a working field operations centre. The self-loading UPS new energy mobile cabin represents what is possible for portable power stations. It is a command tent with an integrated LED display, weatherproofed to support receiving communications and conducting command activities. It has storage capacity to support operation of several laptops, medical devices and communications equipment simultaneously and provide continual support for several days.
This mobile energy container adds a new generator trailer. Unlike a traditional trailer, this mobile energy container includes a self-loading frame, so once removed from the transport truck, it can use an electric or hydraulic leg system to become its own unit and set up the integrated tent in just minutes. The built-in UPS battery bank will also keep the LED monitor and critical load powered at all times, even while refueling for the generator. The cabin is used by international organisations to run field hospitals, by mining camps for crew meetings or by event coordinators to run large outdoor conferences; making the cabin serve as both an emergency power generator and meeting room — eliminating the need for separate tents, A/V equipment and diesel generators.
Field Applications – Where This Mobile Energy Cabin Excels
| Scenario | Real-World Deployment | Cabin Capability Delivered |
|---|---|---|
| Disaster Response | Following a magnitude 6.8 earthquake, a relief agency set up the cabin as an off‑grid coordination centre. The tent sheltered the medical triage team from monsoon rain while the UPS system powered ventilators and satellite phones without a single interruption over 72 hours. | Continuous medical-grade power with weather protection for personnel and equipment. |
| Mining & Construction Camps | A copper mine in the Andes uses the cabin as a mobile safety briefing room. Crews rotate through for pre‑shift meetings under the tent, watching safety videos on the LED screen. The self‑balancing legs keep the cabin level on the graded but uneven mountain pad. | All‑terrain stability for professional AV presentations at remote sites. |
| Large‑Scale Outdoor Events | At a three‑day music festival, the organiser positioned two cabins behind the main stage. One served as the production office with live camera feeds on the LED display; the other charged 60 two-way radios and mobile phones simultaneously via custom charging panels. | Dual‑purpose venue operations combining communications, monitoring, and crew welfare. |
| Military Field Exercises | A NATO‑aligned training exercise deployed the cabin as a mobile tactical operations centre. The 4G positioning module relayed coordinates to command, while Bluetooth broadcasting delivered real‑time instructions to troops across the training area. | Secure, connected command post with integrated communication suite. |
Technical Specifications
| No. | System | Parameter | Available Options | |
|---|---|---|---|---|
| 1 | Auxiliary Lighting | Input Voltage | AC220V | |
| 2 | IP Grade | IP65 | ||
| 3 | Auxiliary Lighting Lamp | LED 18W | ||
| 4 | Quantity | 2 | ||
| 5 | Emergency Warning Lights | LED 18W | ||
| 6 | Quantity | 2 | ||
| 7 | Auxiliary Battery | Battery Type | Gel / LiFePO4 / Lead‑Acid / AGM | |
| 8 | Battery Capacity | 5kWh / 10kWh / 15kWh / 20kWh | ||
| 9 | Input Voltage | AC220V / DC24V / DC48V / DC72V | ||
| 10 | Output Voltage | DC12V‑DC72V / AC220V | ||
| 11 | UPS Power Supply | Power Battery Capacity | 10kVA / 20kVA / 30kVA / 40kVA / 50kVA / 60kVA | |
| 12 | Control System | Charging Panel | Customized | |
| 13 | Control Panel | Killer Switch / Rotary Button / Touch Screen | ||
| 14 | Remote Control | Yes / No | ||
| 15 | Remote Control Type | Remote Controller | ||
| 16 | Rack System | Frame Material | Carbon Steel / SS304 | |
| 17 | Supporting Leg | Electric / Hydraulic | ||
| 18 | Self‑Balancing System | Yes / No | ||
| 19 | Movement | 2 Swivel Wheels + 2 Fixed Wheels | ||
| 20 | Other Functions | Options | Monitoring / Bluetooth Broadcast / Storage / 4G Positioning | |
| 21 | Drive Function | Yes / No | ||
| 22 | Outer Dimensions | 1900 × 2000 × 2300 mm | ||
| 23 | Net Weight | 750 kg | ||
| 24 | Package | Loose / Normal Wooden Box / Non‑Fumigation Wooden Box | ||
UPS power from 10kVA to 60kVA, integrated tent, LED display, and self-loading legs. Configure a unit tailored to your mission profile.
Request a Custom Quote
Flexible MOQ • OEM Branding • Global Logistics • Turnkey Support
OEM/ODM Mobile Cabin Solutions for Organisations
Mission-Configured Energy Cabins
Self-loading UPS new energy mobile cabins are engineered to meet the specific operational needs of each deploying organisation. From 60 kVA for field hospitals, up to 10 kVA for disaster centre containers, to different charging panel designs for different types of devices, our team of engineers assemble all of the power, shelter, and communication systems prior to the mobile trailer leaving the manufacturing factory. All mobile trailer units are provided with material certifications, CE documentation, and fumigation-free export packaging as part of normal operations.
How to Specify Your Mobile Energy Cabin
Three critical parameters that determine how well the cabin will serve your operational needs.
UPS Capacity Planning
Determine the total watts for all devices you’re going to run at the same time, including lights, large screens, comms, and medical devices, and add 30% of that total for safety. A 30kVA UPS is typically enough to cover your lighting, your screen, your laptops, and small medical devices in a field office. Use a 50kVA or 60kVA for imaging equipment or multiple HVAC units.
Terrain & Mobility Requirements
For short distance repositioning manually, the common configuration of 4 wheels with 2 swivel and 2 fixed will work on paved and hard surfaces. If the cabin is used on sloped or uneven terrain, a self-leveling system with electric or hydraulic legs is highly recommended to ensure that the cabin and screen remain level during meetings and/or presentations.
Communication & Monitoring Payload
If a central command post is to track the cabin, choose a 4G positioning module. For public address purposes, a Bluetooth voice broadcast capability should be incorporated. The use of CCTV monitoring with the integrated LED screen allows staff to see in real-time outside the camp or while on-site for safety and security-sensitive applications as well as to monitor all perimeters of a remote camp.
Frequently Asked Questions
How long can the UPS power the cabin without an external generator?
Both battery runtime for an uninterruptible power supply (UPS) and its load depend on the capacities of both the battery and the connected load.
So, how long will a UPS run for? A typical runtime of a UPS can be calculated:
Battery bank size divided by connected load size will equal approximate runtime hours.
Steel frame field office powered by a 30kVA UPS and equipped with a Lithium Iron Phosphate (LiFePO4) battery bank will allow for a maximum storage capacity of 15kWh. Providing power for 4 – 6 hours depending on loads (LED monitors, laptops, lighting, etc.) with the auxiliary generator connected to the UPS becomes an option for indefinite power availability with automatic switching during discharge of the battery.
Is the tent suitable for extreme weather conditions?
This integrated tent has been designed to withstand the wind and rain at outdoor events and for field deployment. As a result, it provides a safe, sheltered area during monsoon season and has ground anchoring hardware that allows it to be used in high wind environments. If you anticipate extreme conditions (in the Arctic or desert), please reach out to our Engineering Team for thermal insulation information.
Can the LED screen be used for video conferencing?
Yes! The standard HDMI and VGA inputs of the LED display, as well as its 4G location module and optional CCTV cameras, allow it to work with laptops, satellite communication systems, and video conferencing equipment. The LED display can be used for both presentations and security monitoring, using the CCTV cameras.
How is the cabin transported between sites?
A standard flatbed truck or trailer can transport the cabin easily due to its self-loading feature. After arriving at the destination, the cabin’s electric or hydraulic legs will raise the cabin; the truck will then leave, and the cabin will descend to the ground, all using a single operator’s remote control. The whole process does not require the use of cranes or forklifts for either deployment or recovery.
