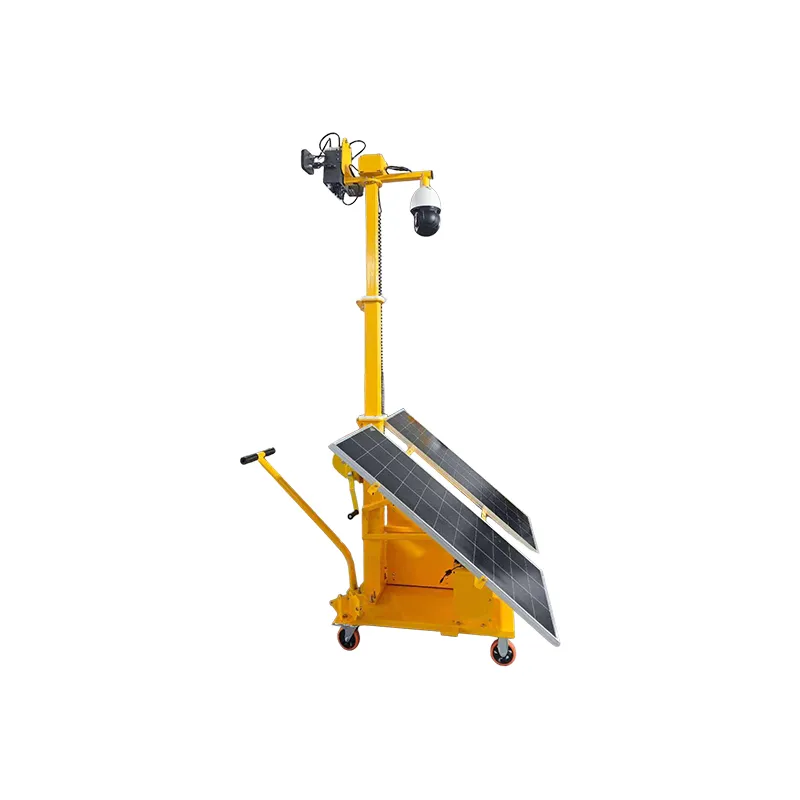

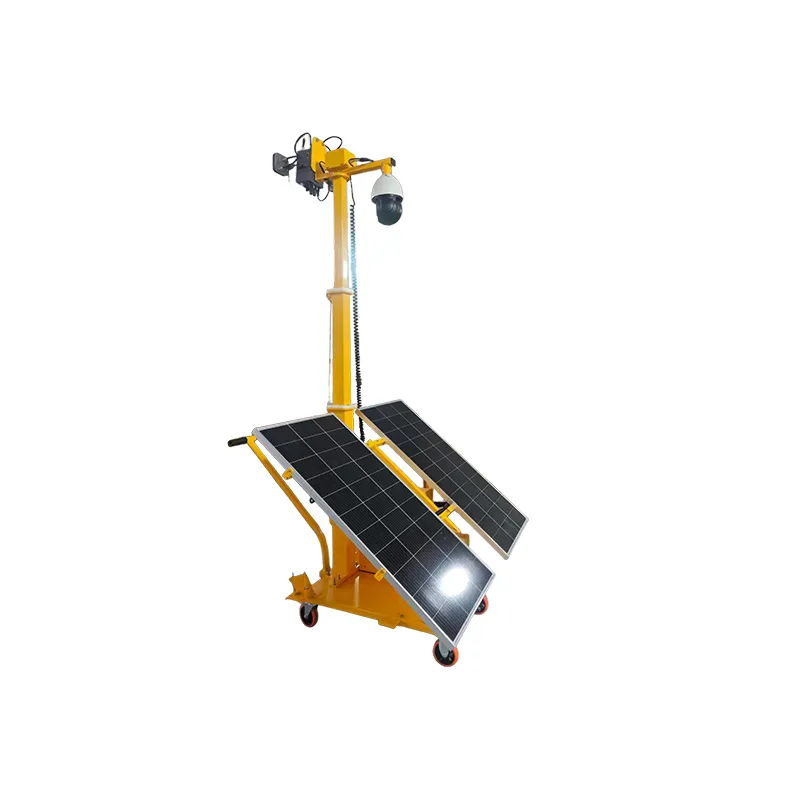

Solar-Powered Mobile Sentinel (Wacker Model)
1. Solar panels, with efficient conversion
2. Push-button design, convenient and fast
3. Infrared camera, capable of monitoring everything you need to see
4. 24-hour uninterrupted operation

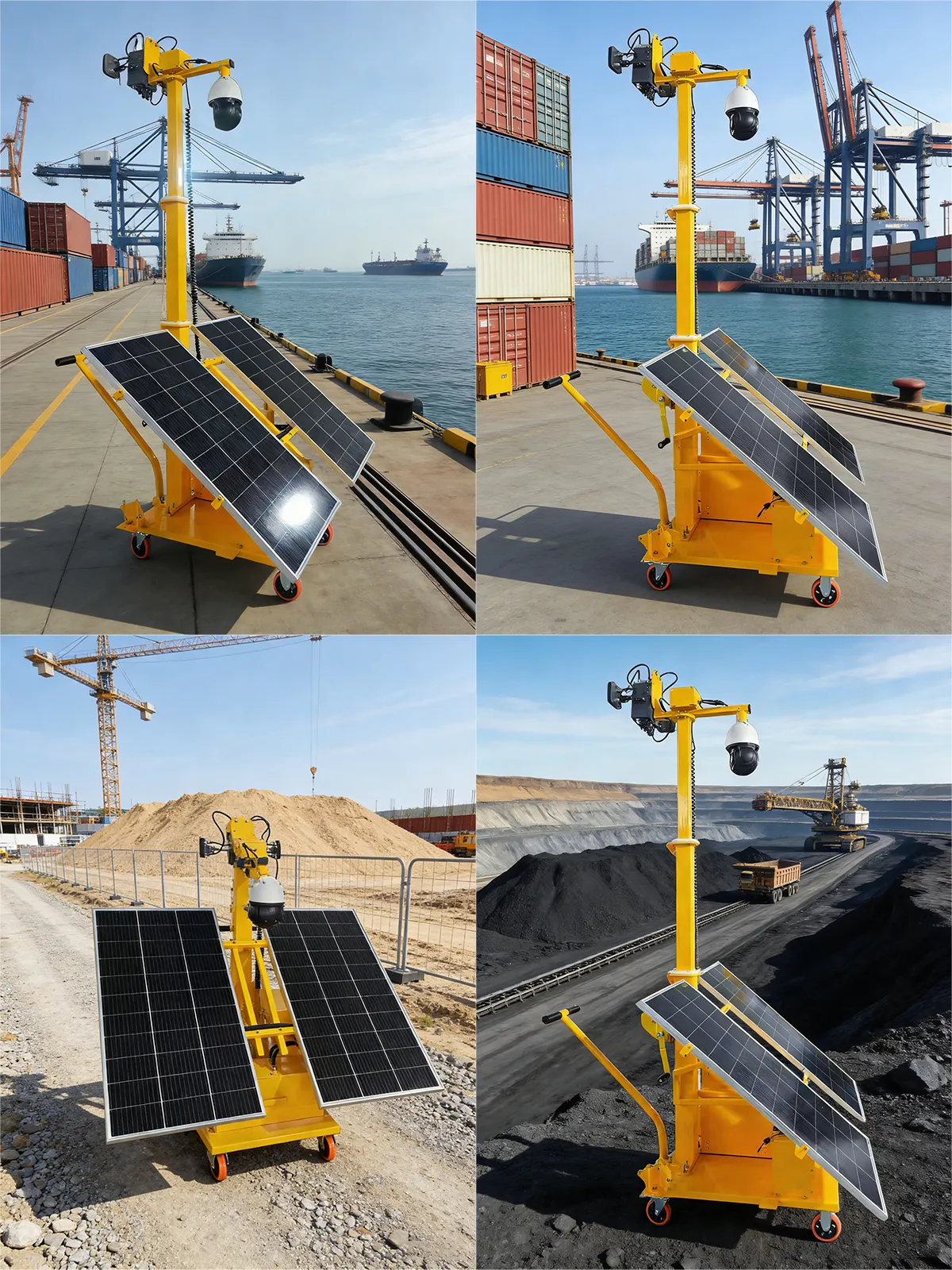

5. Very suitable for supervision of workers’ operations in places such as docks, storage yards, and construction sites
6. Sound and light alarm. If you spot an intruder in the camera view, you can use the lighthouse to issue a sound and light warning for the intruder to leave. If someone gets too close to the lighthouse, a sound and light alarm can also be issued (this is an optional feature). If a fire occurs nearby, the lighthouse will also issue a sound and light alert to alert people around to handle the fire.From a distance, one can easily notice if there is a device operating or malfunctioning here, thus alerting passers-by to avoid getting injured.
7. 4G IOT
Solar Powered Mobile Sentinel System for 24/7 Perimeter Protection
This Mobile Security Tower (Wacker Model) is a portable solar-powered system that can be used to protect areas that are not connected to the grid, such as temporary perimeter security and outdoor surveillance at all times of day or night. The Mobile Solar Surveillance Unit has solar panels that are highly efficient, battery storage, LED lights for night use, and optional intelligent monitoring modules. This security device has a variety of applications in both temporary and permanent locations, such as construction sites, parking lots, remote facilities, mining sites, special events, and emergency response locations.
Unlike Fixed security installations, mobile solar security towers can be quickly deployed without requiring any permanent installation or grid power supply. The Wacker model has the capability to operate completely off of solar energy and may be operated remotely with the use of motion detection, Bluetooth communications and various customized LED lamp configurations. This model is best suited for use by those needing rapid deployment of off-grid mobile security or portable solar-powered surveillance systems over large outdoor areas.
Solar Mobile Security Tower – Key Engineering Highlights
| Design Feature | Technical Execution | Field Benefit |
|---|---|---|
| Solar-Powered Off-Grid Operation | Single crystal silicon solar panels with 100W, 200W, 300W, 400W, 500W, or 600W options, supported by storage batteries from 5kWh to 20kWh. | Continuous off-grid security for construction sites, parking lots, remote facilities, and emergency areas. |
| Elevated LED Lighting | LED lamp options include 50W, 100W, and 150W with AC220V input, IP65 protection, and 2-lamp configuration for outdoor night-time illumination. | Provides reliable night visibility for temporary perimeter protection and outdoor surveillance. |
| Adjustable Mast System | Electric, pneumatic, or hydraulic mast options with 3m, 4.5m, 5m, and 6m height choices. Mast materials include carbon steel, SS 304, and aluminum alloy. | Allows flexible wide-area monitoring coverage according to site size and camera height requirements. |
| Intelligent Monitoring & Warning | Integrated 5 million pixel infrared sensor surveillance ball, Intelligent Wireless IoT Substation, human body detection, and automatic sound and light synchronization alert. | Improves real-time threat detection and helps deter unauthorized access. |
| Handcart-Style Mobility | Carbon steel or SS 304 rack system with manual or electric stabilizer bracket, wheel or track movement options, optional electric assist, and optional drive function. | Supports rapid repositioning across job sites, temporary work zones, and outdoor security points. |
Technical Specifications
| Solar-powered mobile sentinel (Wacker model) | ||||
| No | System | Item Name | Specification | |
| 1 | Light system | LED Lamp | ()50W ()100W ()150W | |
| 2 | Input voltage | AC220V | ||
| 3 | IP grade | IP65 | ||
| 4 | Lamp quantity | 2 | ||
| 5 | Jacking system | Mast | () Electric () Pneumatic () Hydraulic | |
| 6 | Height | ()3m ()4.5m ()5m ()6m | ||
| 7 | Material | () Carbon steel () SS 304 () Aluminum alloy | ||
| 8 | Color | () Black () White () Original | ||
| 9 | Power system | ()Storage battery | Battery | () Gel battery () Lithium iron phosphate battery () Lead-acid battery () AGM battery |
| 10 | Electric quantity | ()5kWH ()10kWH ()15kWH ()20kWH | ||
| 11 | Input voltage | ()AC220V ()DC24V ()DC48V ()DC72V | ||
| 12 | Output voltage | ()DC12V ()DC24V ()DC36V ()DC48V ()DC72V ()AC220V | ||
| 13 | ()Solar panel | Solar panel | Single crystal silicon | |
| 14 | Solar panel power | ()100W ()200W ()300W ()400W ()500W ()600W | ||
| 15 | Solar panel quantity | ()1 ()2 ()3 ()4 | ||
| 16 | Solar panel unfold | () Manual () Electric () Remote Control | ||
| 17 | Focus light system | ()Yes ()No | ||
| 18 | Control system | Control panel | () Killer switch () Rotary button switch | |
| 19 | Remote control | ()Yes ()No | ||
| 20 | Remote control way | Remote contoler | ||
| 21 | Monitoring | 5 million pixel infrared sensor surveillance ball | ||
| 22 | Base station | Intelligent Wireless IoT Substation | ||
| 23 | Sound and light warning | Human body detection / Automatic sound and light synchronization alert | ||
| 24 | Rack system | Material | () Carbon steel ()SS 304 | |
| 25 | Handcart-style | Stabilizer bracket | () Manual () Electric | |
| 26 | Move wheel | () Wheel () Tracks | ||
| 27 | Assist | ()No ()ELectric assist | ||
| 28 | Drive function | ()Yes ()No | ||
| 29 | Other function | () Emergency charging (DC 24V) () Emergency charging (AC 220V) () Self-check function () Bluetooth voice broadcasting playback function | ||
| 30 | Outer size | 1700x1460x1750 mm | ||
| 31 | Weight | 400 kg | ||
| 32 | Package | （）Loose package （）Normal wooden box （）Non-fumigation wooden box |
||
Portable solar security tower with LED lighting, solar panels, battery storage, CCTV monitoring, motion detection, remote control, Bluetooth communication, 4G tracking, and customizable smart security modules.
Request a Mobile Security Tower Quote
Flexible MOQ • OEM Branding • Global Logistics • Full Documentation
OEM/ODM Services for Wholesale Buyers
Custom Solar-Powered Mobile Sentinel Configurations
The Solar-Powered Mobile Sentinel Wacker Model can be customized for different off-grid security, temporary surveillance, and outdoor perimeter protection projects. Buyers can configure LED lamp wattage, mast type, mast height, mast material, solar panel power, solar panel quantity, battery type, battery capacity, control system, monitoring module, sound and light warning system, rack material, movement method, electric assist, emergency charging, and packaging. This makes the system suitable for construction site security, parking lot monitoring, mining site surveillance, remote facility protection, and emergency response deployment.
How to Specify Your Solar-Powered Mobile Sentinel
A portable solar-powered security tower’s performance relies on three primary factors: LED light fixture configuration, size of the Solar Panel(s)/battery system, and optional smart monitoring options.
LED Lamp Power & Coverage
Choose your lamp’s wattage (50W, 100W, 150W) and quantity of lamps (2) based on how big your area is that you want lit up. Add more lamps if your space is larger, such as: Large sites, parking areas or event perimeters to get the biggest possible coverage at night.
Power System Configuration
The mobile sentinel powered by solar, is able to support any type of storage battery (gel, LiFePO4, lead-acid, AGM) with a capacity of between 5 to 20 kWh. The Mobile Sentinel will also work with AC/DC input and output voltage for ease in utilizing this equipment in an off-grid application. The solar panels can be wired 100 to 600 watts, with each panel having 1 to 4 solar cells depending on whether they are wired manually, by electrical means, or through remote control, for maximum flexibility.
Control & Smart Monitoring
There are two options available for controlling the device; either a remote control or a hand shank control panel. Additionally, there are several optional smart modules that can be added to enhance functionality including an infrared camera (5 megapixels), voice broadcast via Bluetooth, IoT base station integration, and sound/light alerts to detect human movement. Together these features enable monitoring in real-time and an immediate response for construction sites, events, remote locations and emergencies.
Frequently Asked Questions
What is a Solar-Powered Mobile Sentinel used for?
It has LED lighting, solar panels, battery storage, CCTV monitoring, motion detection, and smart modules provide portable, off-grid security.
The system’s versatile design makes it suitable for use at construction sites, parking lots, remote facilities, outdoor events, and during emergencies.
How high can the lighting mast extend?
Three, four and a half, five, or six meter heights are available for mast height options. Select a height preference based on the requirements for coverage and the geography of the site.
What LED lamp options are available?
With 2 lamps usually used, an LED lamp can provide 50W, 100W or 150W of power to assist with varying site sizes.
Can the system operate off-grid?
Absolutely, combining battery storage (5-20kWh) with photovoltaic panels (100-600W) allows for operation at all times, even if there’s no utility/grid power.
Is remote monitoring and control available?
Remote control, IoT base station integration, 4G tracking, and smart modules for video surveillance, motion detection, and Bluetooth communication all are possible choices.
What optional smart modules can be added?
There are many different types of sensors, including video monitoring, human being detection, Bluetooth voice broadcasting, automatic sound/light alerts, IoT connectivity and self-check functions.
Can the Wacker model be customized for OEM/ODM projects?
Yes, you can customize the LED Lamp, number of lamps, mast type and height, battery type and capacity, solar panel quantity or power, control system, smart module, rack system, and package type.
