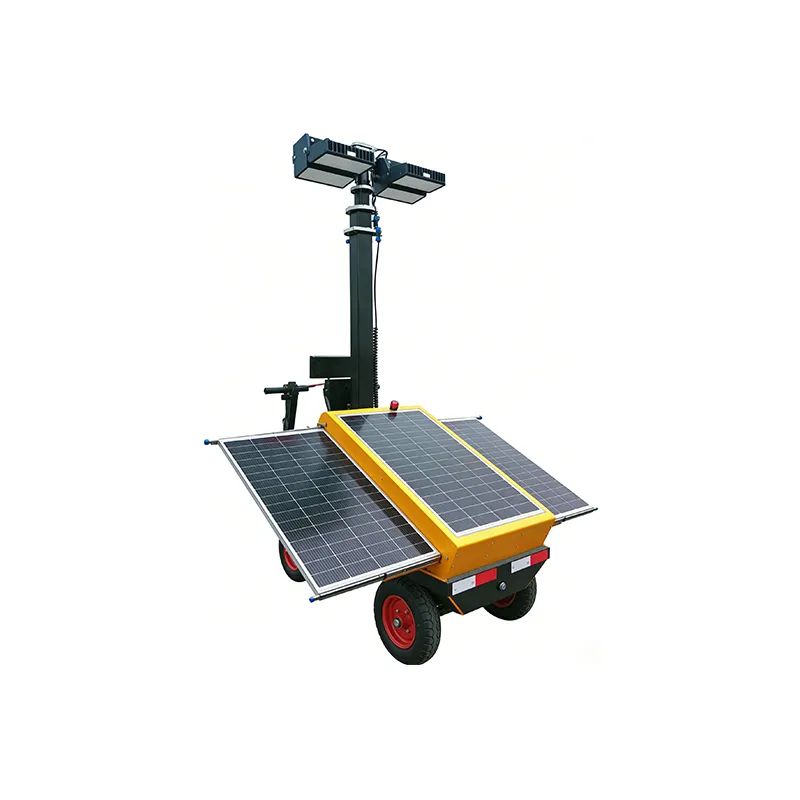

Solar-powered extended-range mobile lifting light tower (electric assist version)
1. Electric assistance. In the uphill area, just press the button and it will move upwards, which is very effortless.
2. Perfect for mines, hills, parking lots and other slope-based places.
3. High-efficiency solar panels, environmentally friendly and energy-saving.
4. Can use generators, batteries or solar panels to output power.
5. Optional installation of a pan-tilt to allow the lamp to shine from multiple angles.
6. Optional installation of a self-check system to ensure safe night construction.
Solar-Powered Mobile Lifting Light Tower

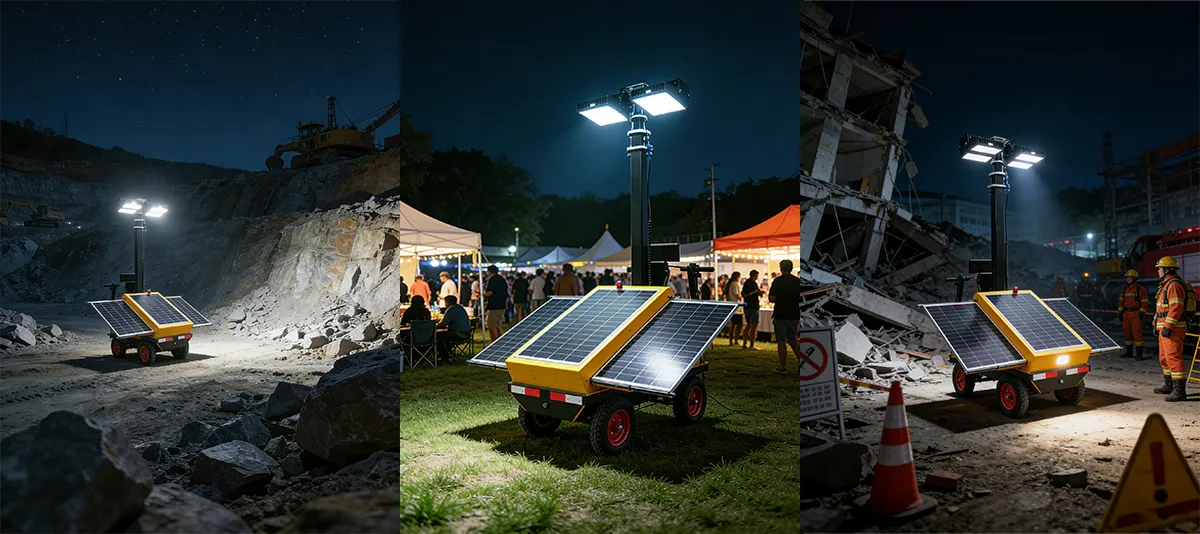

The extended-range mobile lift tower powered by solar energy and solar battery installed to charge batteries and supply power in construction sites. Emergency lighting for mines, infrastructure projects and emergency rescue situations.
This system provides dependable nighttime light in a remote location or one without a power grid, while also greatly reducing operational costs due to the system’s design for long-lasting operation, minimum maintenance required, and zero gasoline or diesel fuel usage. Additionally, the electric assist mechanisms aid the operator in raising/deploying the mast easily with very little effort by using only one person to operate it.
The integrated trailer platform assembles a small-scale mobile package containing all of the components of solar energy systems, including solar panels, battery systems, LED lighting fixtures, masts and intelligent controls that support the quick distribution and relocation of these resources.
Solar Mobile Light Tower – Key Engineering Highlights
| Design Feature | Technical Execution | Field Benefit |
|---|---|---|
| Solar Power System | High-efficiency monocrystalline solar panels with MPPT controller for optimized energy harvesting. | Zero fuel cost off-grid operation. |
| Electric Assist Mast | Electric lifting telescopic mast for smooth extension up to 6–9 meters. | Fast and labor-saving deployment. |
| LED Lighting System | High-lumen IP65 LED floodlights with 360° illumination coverage. | Uniform shadow-free lighting. |
| Mobile Trailer Design | Heavy-duty galvanized steel trailer with off-road wheels. | Easy transport and relocation. |
Technical Specifications
| Solar-powered extended-range mobile lifting light tower (electric assist version) | ||||
| No | System | Item Name | Specification | |
| 1 | Lamp | LED LIGHT | ()50W ()100W ()150W ()200W ()300W | |
| 2 | Input voltage | AC220V | ||
| 3 | Lamp IP grade | IP65 | ||
| 4 | Lamp quantity | ()2 ()4 ()6 ()8 | ||
| 5 | Jacking system | Mast | () Manual () Hand-operated () Electric () Pneumatic () Hydraulic | |
| 6 | Height of mast | ()3m ()4.5m ()6m | ||
| 7 | Material of mast | () Carbon steel () SS 304 | ||
| 8 | Color | () Black () White () Metallic original color | ||
| 9 | Power | Generator | Gasoline Generator | () Open-style () Silent model () Extended-range model |
| 10 | Power | ()700W ()1000W ()2000W ()3000W ()5000W | ||
| 11 | Fuel tank | ()Yes ()No | ||
| 12 | Battery | Battery type | () LiFePO4 () Gel () Lead-acid () AGM | |
| 13 | Capacity | ()5kWh ()10kWh | ||
| 14 | Input voltage | ()AC220V ()DC24V ()DC48V ()DC72V | ||
| 15 | Output voltage | ()DC12V ()DC24V ()AC220V | ||
| 16 | Solar system | Solar panel | Monocrystalline silicon | |
| 17 | Power | ()100W ()200W ()300W ()400W | ||
| 18 | Quantity | ()1 ()2 ()3 | ||
| 19 | Deployment | () Manual () Electric () Remote | ||
| 20 | Focus system | ()Yes ()No | ||
| 21 | Control system | Panel | () Switch () Rotary () Touch screen | |
| 22 | Pan tilt | () Light () Heavy duty | ||
| 23 | Rotation | ()360° ()90° ()330° | ||
| 24 | Remote | ()Yes ()No | ||
| 25 | Self check | ()Yes ()No | ||
| 26 | Control | Remote Controller | ||
| 27 | Rack system | Material | () Carbon steel () SS 304 | |
| 28 | Stabilizer | () Manual () Electric | ||
| 29 | Wheel | () Wheel () Tracks | ||
| 30 | Assist | Electric assistance | ||
| 31 | Drive | ()With ()Without | ||
| 32 | Other functions | () Emergency charging () Self-check () Bluetooth broadcast | ||
| 33 | Size | 2200 × 1100 × 2200 mm | ||
| 34 | Weight | 550 kg | ||
| 35 | Package | () Loose () Wooden box () Fumigation-free box | ||
OEM/ODM Solar Lighting Tower Solutions
We are able to fully personalize your Solar Powered Mobile Light Tower (including battery sizes; solar panel configuration; mast height; light strength; and control system used) for your unique industrial application requirements.
How to Choose Solar Mobile Lighting Tower
Key selection factors for off-grid solar lighting systems.
Solar vs Hybrid System
Choose full solar for low-cost off-grid use or hybrid backup for continuous operation.
Mast Height
6m for compact sites, 8–9m for large area illumination.
Battery Capacity
Higher kWh ensures longer night-time operation without sunlight.
Frequently Asked Questions
Q: How long can a solar mobile lifting light tower run at night?
A: Usually takes between 12 to 48 hours to charge based on battery size/AMP load; extended range types will allow multiple nights of operation before needing to be recharged.
Q: Can it work during cloudy or rainy weather?
A: Yes, energy is stored in lithium batteries, so operation continues even without direct sunlight.
Q: Is it suitable for construction and mining sites?
A: Yes, it is widely used for construction, mining, roadworks, and remote off-grid projects.
Q: Can it be used for rental or PPA business models?
A: The most advantageous way to use a lighting tower rental or PPA (Power Purchase Agreement) model is through solar energy.
Q: What is the advantage compared to diesel lighting towers?
A: Zero diesel fuel cost, minimal noise level, low wear and tear; no exhaust emissions when compared to diesel equipments.
Q: Is it easy to transport and deploy?
A: Yes, trailer design and electric assist mast allow fast deployment by a single operator.
