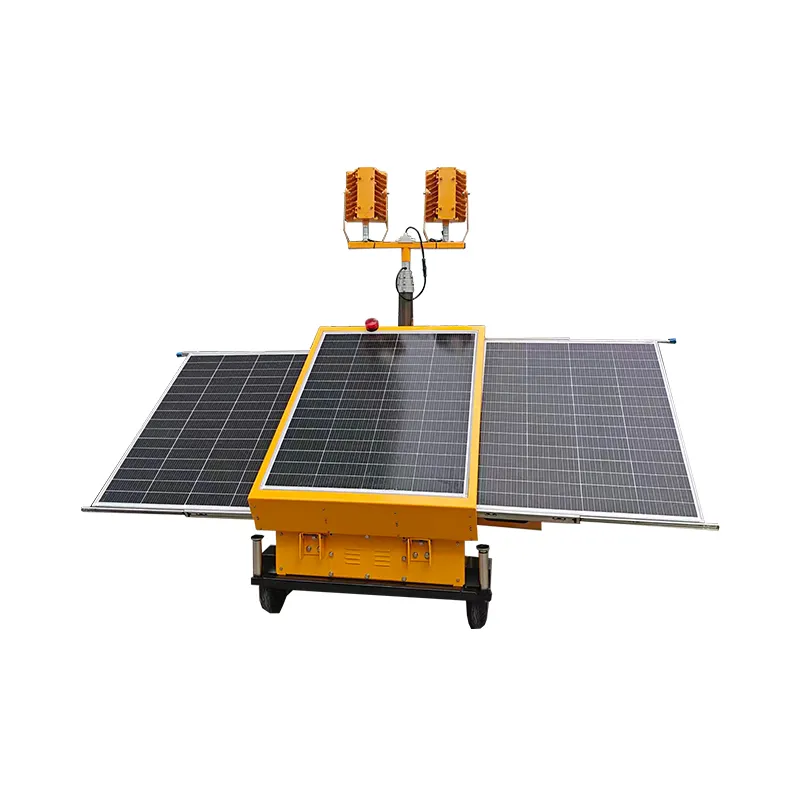

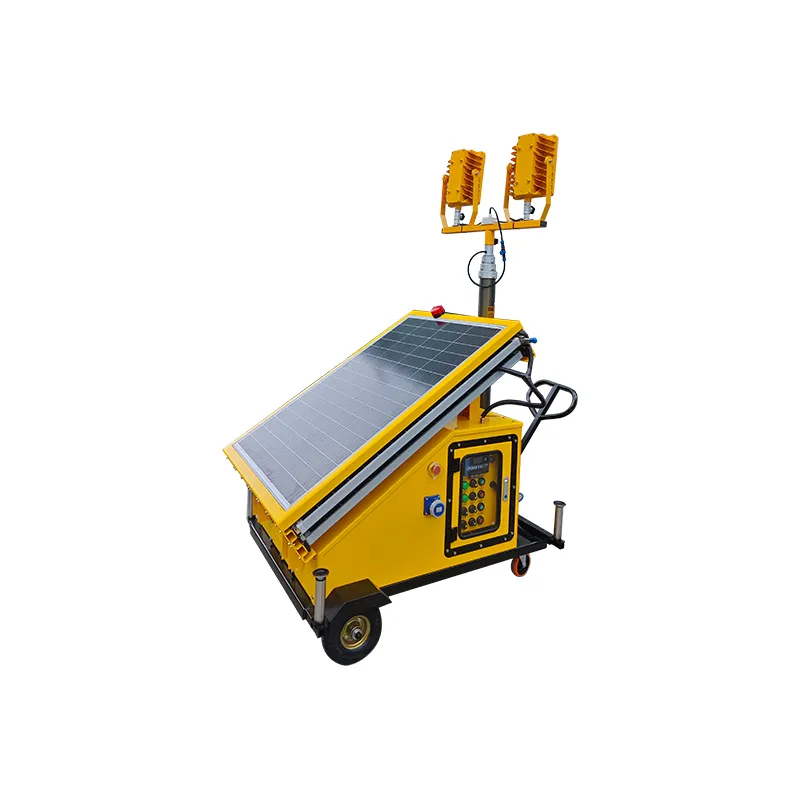

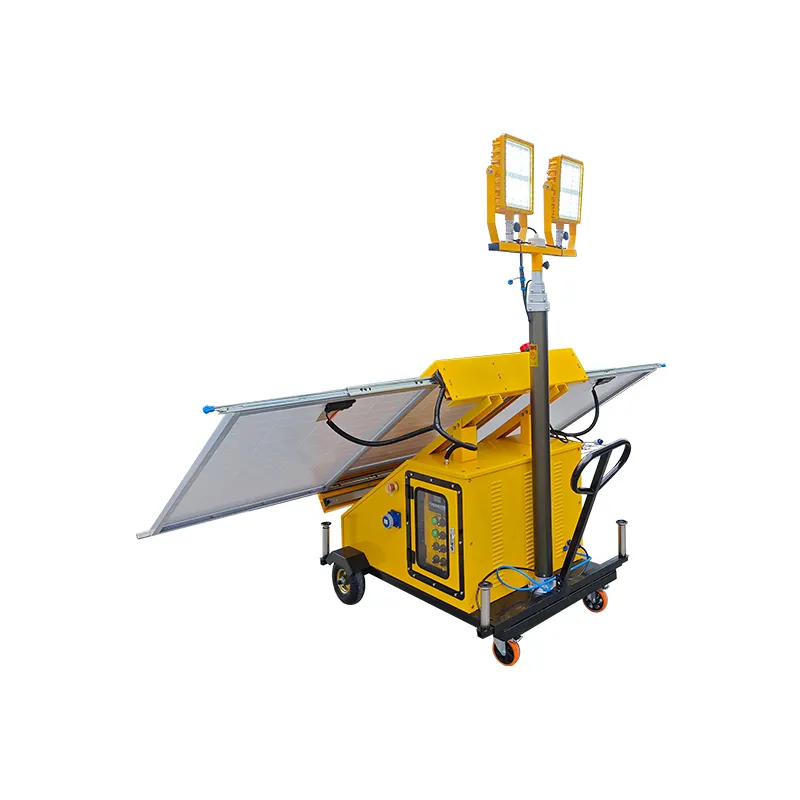

Solar-powered mobile lifting work lamp (Wacker type)
1. Wacker model, easy to operate
2. Multiple battery materials are available for selection
3. Solar panel has high conversion efficiency
4. Suitable for construction at night in the Middle East or hot regions
5. Low cost, easy to maintain
6. Resistant to sand and wind 7. Very suitable for areas without electricity supply.
Solar-powered Mobile Lifting Work Lamp
The Solar-Powered Work Lamp (Wacker) is specifically engineered to meet the needs of demanding outdoor environments. A high-efficiency solar energy system, telescoping lifting mast, and bright LED’s make this compact mobile solution perfect for all outdoor applications. The portable solar light tower is designed to meet the requirements of construction sites, municipal work, mining sites, emergency response, infrastructure improvements and temporary outdoor lighting needs where reliability and off-grid power are critical.
In contrast to traditional diesel-powered portable light towers, this off-grid solar-powered light tower operates with no fuel, low noise, and little maintenance. Filling the battery bank each day is accomplished through the use of high efficiency PV panels that provide a stable source of nighttime light and significantly lower operating costs and reduce carbon emissions. The compact design of the mobile chassis enables one person to set up the unit quickly and efficiently, making it an excellent lighting solution for contractors, rental agencies and industrial use around the globe.
Solar-powered Mobile Light Tower – Key Engineering Highlights
| Design Feature | Technical Execution | Field Benefit |
|---|---|---|
| Integrated Solar Power System | High-efficiency monocrystalline solar panels with intelligent MPPT charging technology continuously recharge the battery during daylight. | Zero fuel consumption and reduced operating costs. |
| Flexible Telescopic Mast | Multiple lifting systems are available, including manual, electric, pneumatic and hydraulic masts with heights from 3 m to 7 m. | Fast single-operator deployment for different jobsite requirements. |
| High-Efficiency LED Lighting | Multiple LED lamp configurations from 50W to 300W with IP65 protection provide stable illumination for demanding outdoor environments. | Wide-area construction site lighting with low energy consumption. |
| Wacker-Type Mobile Chassis | Heavy-duty steel frame with optional wheels or tracks, stabilizer supports and electric assistance for improved mobility. | Excellent maneuverability on construction sites, mines and temporary work areas. |
Technical Specifications
| Solar-powered Mobile Lifting Work Lamp (Wacker Type) | ||||
| No | System | Item Name | Specification | |
| 1 | Lamp | LED Light | 50W / 100W / 150W / 200W / 300W | |
| 2 | Input Voltage | AC220V | ||
| 3 | Lamp Protection | IP65 | ||
| 4 | Lamp Quantity | 2 / 4 / 6 / 8 | ||
| 5 | Jacking System | Mast Type | Manual / Hand-operated / Electric / Pneumatic / Hydraulic | |
| 6 | Mast Height | 3m / 4.5m / 6m / 7m | ||
| 7 | Mast Material | Carbon Steel / SS304 Stainless Steel | ||
| 8 | Color | Black / White / Customized | ||
| 9 | Power System | Battery | Battery Type | Gel / LiFePO₄ / Lead-acid / AGM |
| 10 | Battery Capacity | 5kWh / 10kWh | ||
| 11 | Input Voltage | AC220V / DC24V / DC48V / DC72V | ||
| 12 | Output Voltage | DC12V / DC24V / DC36V / DC48V / DC72V / AC220V | ||
| 13 | Solar Panel | Panel Type | Monocrystalline Silicon | |
| 14 | Panel Power | 100W / 200W / 300W / 400W | ||
| 15 | Panel Quantity | 1 / 2 / 3 | ||
| 16 | Panel Deployment | Manual / Electric / Remote Control | ||
| 17 | Control System | Control Panel | Emergency Stop / Rotary Switch | |
| 18 | Remote Control | Yes / No | ||
| 19 | Remote Method | Wireless Remote Controller | ||
| 20 | Rack System | Frame Material | Carbon Steel / SS304 | |
| 21 | Wacker Type | Stabilizer | Manual / Electric | |
| 22 | Mobility | Wheels / Tracks | ||
| 23 | Drive Assist | None / Electric Assistance | ||
| 24 | Drive Function | Yes / No | ||
| 25 | Optional Functions | Emergency Charging (DC24V) Emergency Charging (AC220V) Self-check Function Bluetooth Voice Broadcasting |
||
| 26 | Overall Dimensions | 2800 × 3400 × 1600 mm | ||
| 27 | Net Weight | 360 kg | ||
| 28 | Package | Loose Package Standard Wooden Case Non-Fumigation Export Wooden Case |
||
High-performance solar light tower manufacturer direct supply. Our Wacker-type mobile solar lifting work lamp is available with multiple LED configurations, battery systems, and mast heights from 3m to 7m. Designed for construction sites, mining operations, road maintenance, and emergency lighting applications worldwide.
Request a Quote Today
OEM / ODM Available • Global Shipping • Flexible MOQ • Technical Customization Support
OEM/ODM Services for Wholesale Buyers
Custom Solar Powered Mobile Light Tower Solutions
We offer comprehensive OEM and ODM customization to all global distribution companies in the form of solar light towers as commercial products. We can provide direct support for rental businesses, construction contractors and any infrastructure project suppliers through fully engineered mobile solar light towers designed based on the desired application or working environment/lighting requirement/energy efficiency goals.
How to Select the Right Solar Powered Mobile Light Tower
When selecting between a solar light tower and a mobile solar light tower, you need to consider the environment in which the tower will be used, how long the light is needed for, and whether or not there are restrictions on transporting the tower. These same three factors can help identify the correct configuration of towers for construction, mining, roadwork, and emergency lighting projects.
LED Lighting Power & Coverage Area
The total lumen output of your lighting will determine how effectively your solar powered lighting provides coverage for your site. A 2x100W LED would be adequate for use in smaller maintenance or parking lot areas; however, for larger construction sites or mining environments, we suggest using 4x200W LED lights or higher. Higher lumen output improves safety at night and provides much better visibility over wider areas of work.
Mast Height & Deployment Environment
The height of a mast has a direct impact on the distance that light will travel. A 3-4.5m high mast provides sufficient lighting for urban maintenance activities within a compact space. For construction sites, infrastructure projects, and large open area mines, a 6-7m (telescopic) mast is preferred. The Wacker-type mobile chassis allows the mast to be stabilized regardless of the terrain.
Solar System & Battery Storage Capacity
Portable solar light fixtures use battery power; size of battery determines how long you can run the lights at night continuously. A large lithium battery bank gives you an extended runtime even on cloudy days. MPPT controllers will allow for maximum solar charge efficiency so that your project(s) will have a stable energy supply for multiple days when working outdoors and no electricity available.
Frequently Asked Questions
What is a solar powered mobile light tower used for?
A mobile light tower powered by solar energy provides temporary lighting for outdoor work areas (like construction sites, road maintenance projects, mining operations, and emergency rescue zones). A solar powered mobile light tower does not require any fuel to operate; therefore, it can also be used in off-grid (solar) and remote locations where electricity is not available.
How does a mobile solar light tower work?
A solar light tower uses solar panels to capture solar energy during the daytime and store it in a battery. At night, the battery powers arrayed high-efficiency LED lights on a telescoping vertical pole. There is no requirement for a generator to supply power at night since all illumination comes from the battery system.
How long can a solar light tower run at night?
A solar light tower may provide anywhere from 8 to 30 hours of use depending on how many batteries you have and how much power your LED lights use based on what type of batteries you use. Most larger lithium battery systems can continuously produce light all night (when in a fully charged state) for 24 hours or longer (even when it's cloudy).
What is the difference between solar light tower and diesel light tower?
The solar-powered light towers operate by utilizing other energy sources without incurring any costs for fuel or generating any harmful emissions. Whereby diesel-powered light towers require fuel usage as well as the regular refueling and routine maintenance of the engine. Moreover, when comparing solar and diesel light towers, it is noted that the solar model has lower sound levels, a smaller environmental footprint, and lower long-term ownership costs.
Can a solar light tower work in cloudy or rainy weather?
Correct! The battery-powered mobile solar light tower can work for a long time in spite of clouds, rain and other factors that might affect the sun’s ability to charge the batteries, but the run time will decrease some when there is inadequate sunlight to recharge the batteries.
What mast height is best for a solar lighting tower?
Telescoping mast heights range from 3 – 4.5 meters for small jobsite; 6 – 7 meters will provide better coverage/lit area for construction, mining and large outside projects.
Is a solar light tower suitable for construction sites?
Certainly! Because of their portability, speed of set up, and ability to deliver stable LED light for at night without dependence on fossil fuel or grid electricity, solar powered mobile light towers have become very common on the construction site.
Can I buy solar light towers directly from the manufacturer?
Indeed. As an OEM and wholesale supplier of direct solar light towers for distributors, rental companies, and construction equipment purchasers, we manufacture and supply our products worldwide.
